LM2902BQPWRQ1
ActiveAUTOMOTIVE, QUAD 36V 1.2MHZ OPERATIONAL AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
LM2902BQPWRQ1
ActiveAUTOMOTIVE, QUAD 36V 1.2MHZ OPERATIONAL AMPLIFIER
Technical Specifications
Parameters and characteristics for this part
| Specification | LM2902BQPWRQ1 |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 10 nA |
| Current - Output / Channel | 30 mA |
| Current - Supply | 350 µA |
| Gain Bandwidth Product | 1.2 MHz |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |
| Package / Case | 14-TSSOP |
| Package / Case [custom] | 0.173 " |
| Package / Case [custom] | 4.4 mm |
| Qualification | AEC-Q100 |
| Supplier Device Package | 14-TSSOP |
| Voltage - Input Offset | 300 çV |
| Voltage - Supply Span (Max) [Max] | 36 V |
| Voltage - Supply Span (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.92 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.48 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.92 | ||
| 10 | $ 0.57 | |||
| 25 | $ 0.48 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 3000 | $ 0.23 | ||
| 6000 | $ 0.21 | |||
| 9000 | $ 0.20 | |||
| 15000 | $ 0.19 | |||
| 21000 | $ 0.19 | |||
| 30000 | $ 0.18 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.39 | |
| 100 | $ 0.27 | |||
| 250 | $ 0.20 | |||
| 1000 | $ 0.14 | |||
Description
General part information

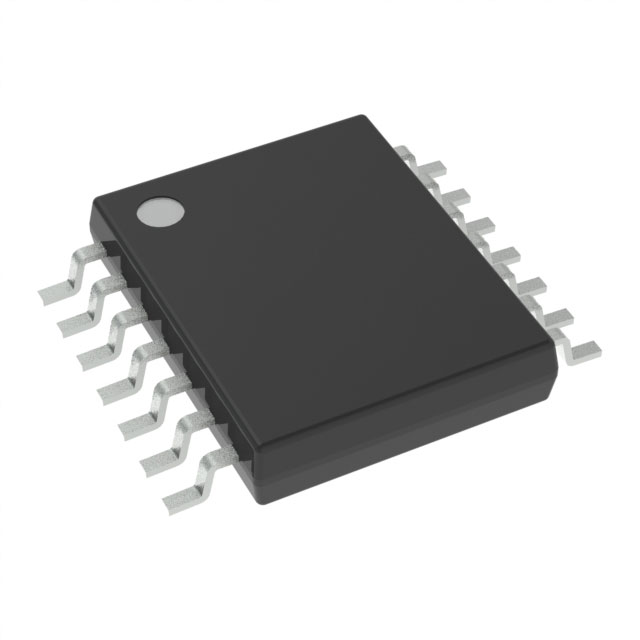

LM2902BQPWRQ1
The LM2902-Q1, LM2902B-Q1, and LM2902BA-Q1 are industry-standard operational amplifiers that have been qualified for automotive use in accordance to the AEC-Q100 specifications. The LM2902B-Q1 and LM2902BA-Q1 are the next-generation versions of the LM2902-Q1, which include four high-voltage (36V) operational amplifiers (op amps). The LM2902B-Q1 and LM2902BA-Q1 provide outstanding value for cost-sensitive applications, with features including low offset (3mV and 2mV maximum, respectively), common-mode input range to ground, and high differential input voltage capability.
The LM2902B-Q1 and LM2902BA-Q1 simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage of 0.3mV (typical), and lower quiescent current of 240µA (typical). High ESD (2kV, HBM) and integrated EMI and RF filters enable the LM2902B-Q1 and LM2902BA-Q1 devices to be used in the most rugged, environmentally challenging applications for the automotive marketplace.
The LM2902-Q1, LM2902B-Q1, and LM2902BA-Q1 are industry-standard operational amplifiers that have been qualified for automotive use in accordance to the AEC-Q100 specifications. The LM2902B-Q1 and LM2902BA-Q1 are the next-generation versions of the LM2902-Q1, which include four high-voltage (36V) operational amplifiers (op amps). The LM2902B-Q1 and LM2902BA-Q1 provide outstanding value for cost-sensitive applications, with features including low offset (3mV and 2mV maximum, respectively), common-mode input range to ground, and high differential input voltage capability.
