0508000009
ActiveFITCO nv

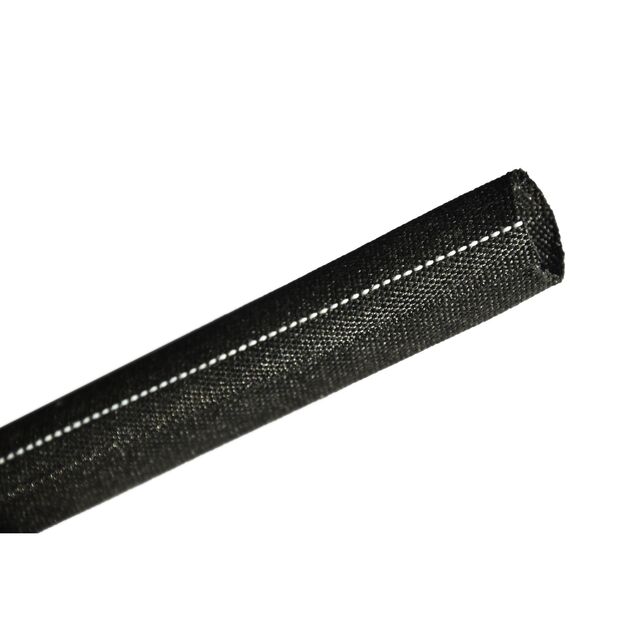

PROTEC WRAP 29MM FR BLACK METER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0508000009
ActiveFITCO nv
PROTEC WRAP 29MM FR BLACK METER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0508000009 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Black |
| Diameter - Inside, Non-Expanded [diameter] | 1.142 in |
| Diameter - Inside, Non-Expanded [diameter] | 29 mm |
| Environment Protection | Environment Resistant, UV Resistant |
| Features | Self Extinguishing, Chemical Resistant |
| Heat Protection | Flame Retardant |
| Length | Enter Number of Meters in Order Quantity |
| Liquid Protection | Oil Resistant, Diesel Fuel Resistant, Gasoline Resistant, Fuel Resistant |
| Material | Polyethylene Terephthalate (PET), Halogen Free |
| Material Flammability Rating | FMVSS 302 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Type | Self Wrap |
| Type Attributes | Split Flexible Tube |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 7.02 | |
| 2 | $ 6.69 | |||
| 3 | $ 6.50 | |||
| 5 | $ 6.27 | |||
| 7 | $ 6.12 | |||
| 10 | $ 5.97 | |||
| 25 | $ 5.59 | |||
| 50 | $ 5.32 | |||
| 100 | $ 5.06 | |||
Description
General part information
0508000009
Self Wrap X Enter Number of Meters in Order Quantity Black
