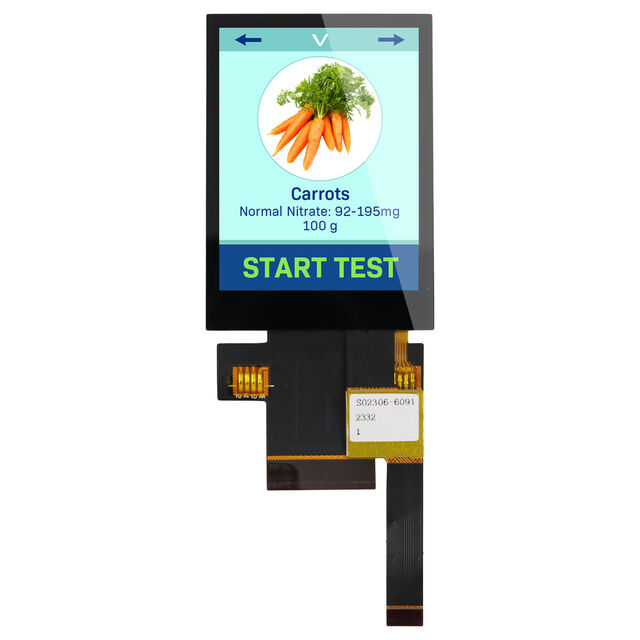

NHD-2.4-240320AF-CSXP-CTP
ActiveNewhaven Display Intl
2.4" TFT HIGH BRITE WITH CAP TO
Deep-Dive with AI
Search across all available documentation for this part.
NHD-2.4-240320AF-CSXP-CTP
ActiveNewhaven Display Intl
2.4" TFT HIGH BRITE WITH CAP TO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-2.4-240320AF-CSXP-CTP |
|---|---|
| Backlight | LED - White |
| Controller Type | ST7789VI |
| Diagonal Screen Size | 60.96 mm |
| Diagonal Screen Size [custom] | 2.4 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels | QVGA |
| Dot Pixels [x] | 320 pixels |
| Dot Pixels [y] | 240 pixels |
| Graphics Color | Black |
| Interface | I2C, 8/16-Bit, Parallel, SPI |
| Touchscreen | Capacitive |
| Viewing Area [x] | 49.96 mm |
| Viewing Area [y] | 37.72 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 42.60 | |
| 10 | $ 33.28 | |||
| 100 | $ 31.62 | |||
Description
General part information
NHD-2.4-240320AF-CSXP-CTP
Capacitive Graphic LCD Display Module Transmissive Black TFT - Color I2C, Parallel, 8/16-Bit, SPI 2.4" (60.96mm) 320 x 240 (QVGA)
