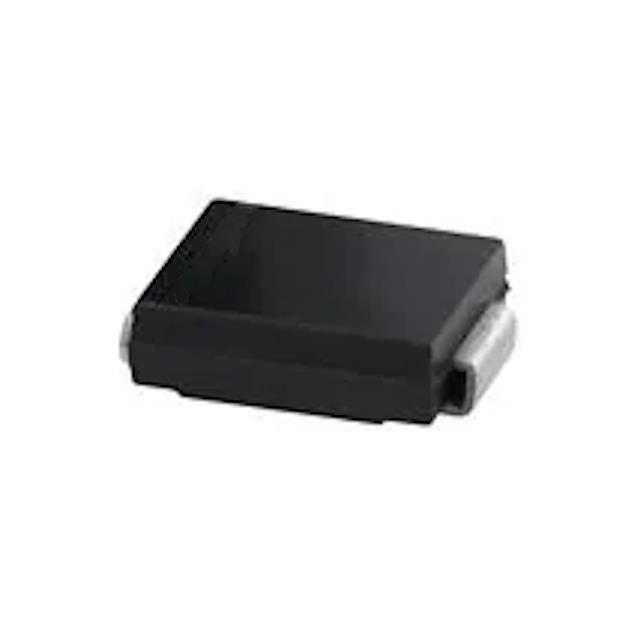

S3AB
ActiveJATTA
BRIDGE RECT 1P 600V 3.0A DO-214A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S3AB
ActiveJATTA
BRIDGE RECT 1P 600V 3.0A DO-214A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S3AB |
|---|---|
| Capacitance @ Vr, F | 60 pF |
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | SMB, DO-214AA |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | SMB |
| Supplier Device Package | DO-214AA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.03 | |
| 6000 | $ 0.10 | |||
| 9000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 48000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
Description
General part information
S3AB
Diode 50 V 3A Surface Mount DO-214AA (SMB)
Documents
Technical documentation and resources
