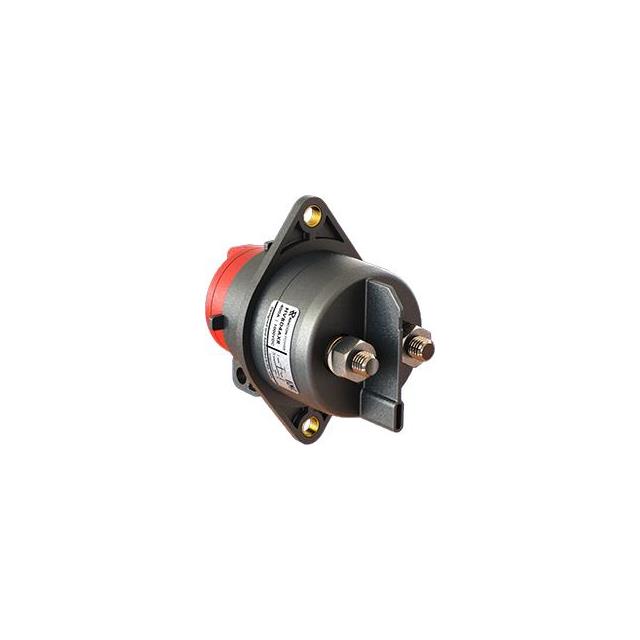

HVBD4AAR
ActiveRincon Power
400A MANUAL DISCONNECT, 1000VDC,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HVBD4AAR
ActiveRincon Power
400A MANUAL DISCONNECT, 1000VDC,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HVBD4AAR |
|---|---|
| Approval Agency | CE |
| Circuit | SPDT, SPST |
| Current Rating (Amps) | 400 A |
| Depth Behind Flange | 61 mm |
| Features | With SPDT Auxiliary Contacts |
| Illumination | Non-Illuminated |
| Ingress Protection | IP69 |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Panel Cutout Dimensions [diameter] | 68.6 mm |
| Switch Function | On-Off |
| Termination Style | Stud |
| Type | Battery Disconnect |
| Voltage Rating - DC | 1 kVDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 153.00 | |
| 5 | $ 149.00 | |||
| 15 | $ 145.00 | |||
Description
General part information
HVBD4AAR
Selector Switch 2 Position SPST + SPDT 400A (DC) Panel Mount
