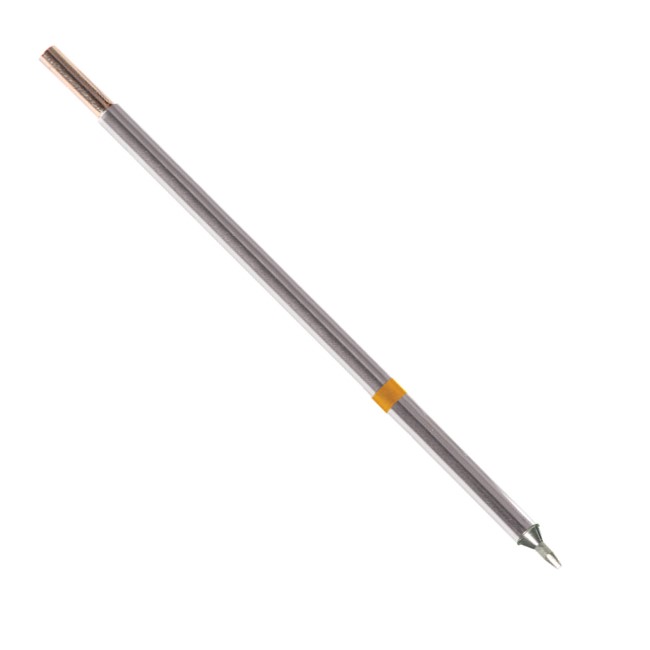

M7CH178
ActiveThermaltronics
CHISEL 30DEG TIP 1.00MM 700F
Deep-Dive with AI
Search across all available documentation for this part.
M7CH178
ActiveThermaltronics
CHISEL 30DEG TIP 1.00MM 700F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M7CH178 |
|---|---|
| For Use With/Related Products | MX-5200, MX-5000, TMT-9000S-2, TMT-9000S-1, MX-500 |
| Length | 8.89 mm |
| Length | 0.35 " |
| Temperature Range [Max] | 748 °F |
| Temperature Range [Max] | 398 °C |
| Temperature Range [Min] | 350 °C |
| Temperature Range [Min] | 662 °F |
| Tip Shape | Chisel 30° |
| Tip Type | Soldering |
| Width | 1.02 mm |
| Width [y] | 0.04 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 19.90 | |
Description
General part information
M7CH178
CHISEL 30DEG TIP 1.00MM 700F
Documents
Technical documentation and resources
No documents available
