ETP10071
ActiveEI Sensor Technologies

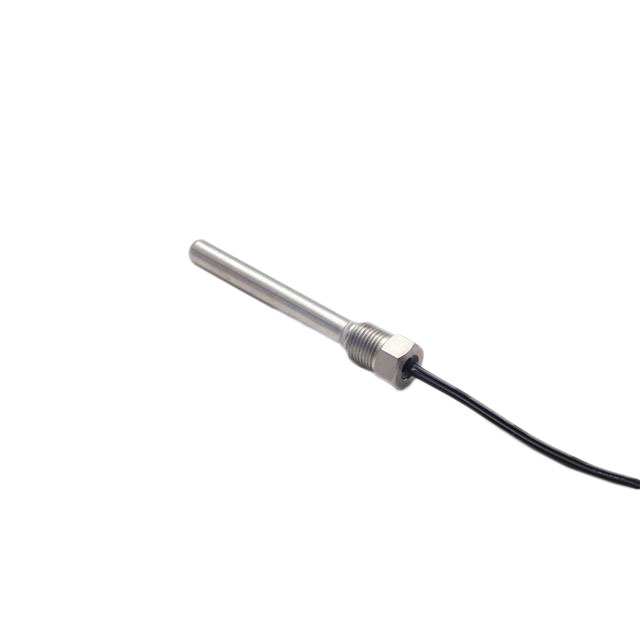

THERMISTOR PROBE,1/8-27 NPT,10K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ETP10071
ActiveEI Sensor Technologies
THERMISTOR PROBE,1/8-27 NPT,10K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ETP10071 |
|---|---|
| B0/50 | 3892 K |
| B25/85 | 3977 K |
| Length - Lead Wire | 876.3 mm |
| Length - Lead Wire | 34.5 in |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.16 | |
| 5 | $ 9.19 | |||
| 10 | $ 8.84 | |||
| 25 | $ 8.41 | |||
| 50 | $ 8.12 | |||
| 100 | $ 7.85 | |||
| 500 | $ 7.31 | |||
| 1000 | $ 7.11 | |||
Description
General part information
ETP10071
NTC Thermistor 10k Probe
Documents
Technical documentation and resources
