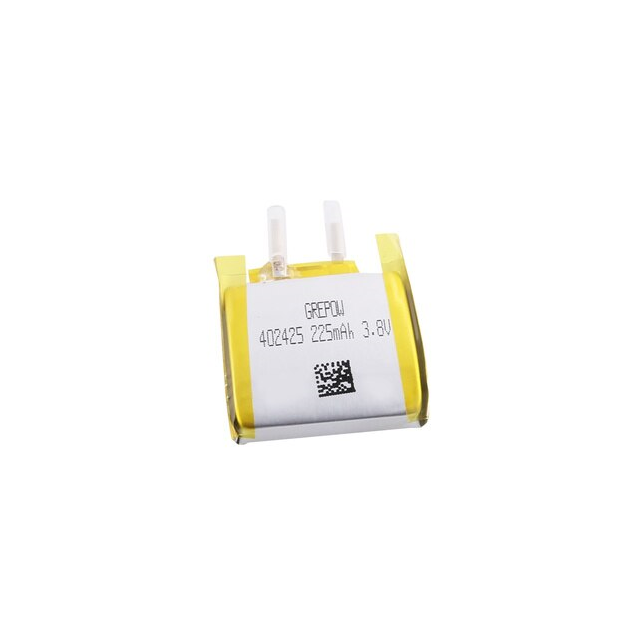

GRP402425-3.8V-225MAH
ActiveGrepow Inc.
BATTERY LITH POLY 3.8V 225MAH
Deep-Dive with AI
Search across all available documentation for this part.
GRP402425-3.8V-225MAH
ActiveGrepow Inc.
BATTERY LITH POLY 3.8V 225MAH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRP402425-3.8V-225MAH |
|---|---|
| Battery Chemistry | Lithium Polymer |
| Capacity | 225 mAh |
| Discharge Rate | 112.5 mA |
| Size / Dimension [x] | 0.99 in |
| Size / Dimension [x] | 25.1 mm |
| Size / Dimension [y] | 24.2 mm |
| Size / Dimension [y] | 24.13 mm |
| Size / Dimension [z] | 4.1 mm |
| Size / Dimension [z] | 0.16 in |
| Standard Charge Current | 200 mA |
| Standard Charge Time | 7 Hrs |
| Voltage - Rated | 3.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.99 | |
Description
General part information
GRP402425-3.8V-225MAH
3.8 V Lithium Polymer Battery Rechargeable (Secondary) 225mAh
Documents
Technical documentation and resources
No documents available
