KTPS200-48042
ObsoleteVolgen + Furuno

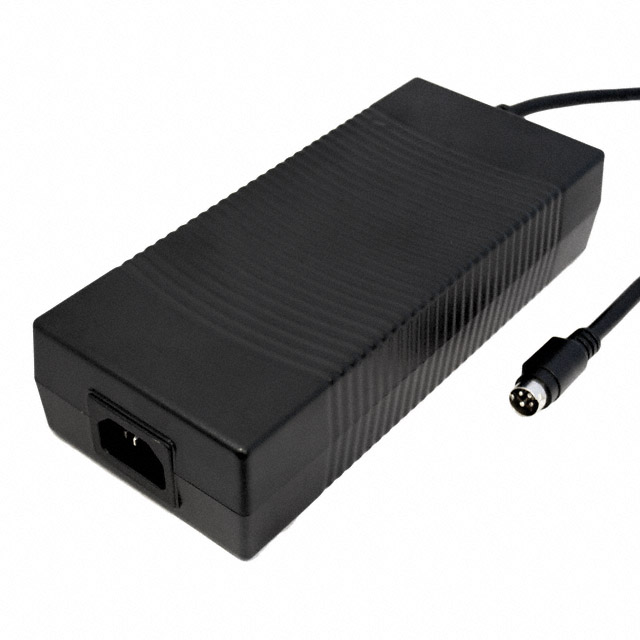

AC/DC DESKTOP ADAPTER 48V 202W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KTPS200-48042
ObsoleteVolgen + Furuno
AC/DC DESKTOP ADAPTER 48V 202W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KTPS200-48042 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 4.2 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 202 W |
| Region Utilized | International |
| Size / Dimension [x] | 183 mm |
| Size / Dimension [x] | 7.2 in |
| Size / Dimension [y] | 3.19 in |
| Size / Dimension [y] | 81 mm |
| Size / Dimension [z] | 1.67 in |
| Size / Dimension [z] | 42.3 mm |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 48 V |
| Weight | 861.8 g |
| Weight | 1.9 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KTPS200-48042
48V 202 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
