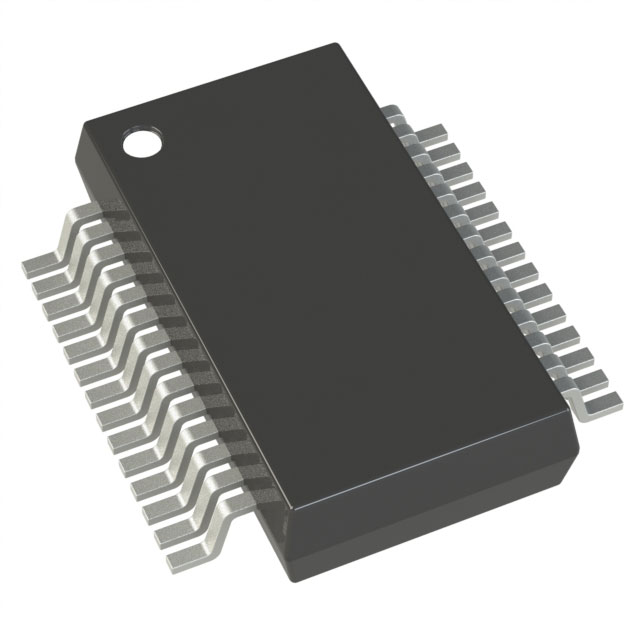

WM8740SEDS/V
ObsoleteCirrus Logic Inc.
IC DAC/AUDIO 24BIT 192K 28SSOP
Deep-Dive with AI
Search across all available documentation for this part.
WM8740SEDS/V
ObsoleteCirrus Logic Inc.
IC DAC/AUDIO 24BIT 192K 28SSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM8740SEDS/V |
|---|---|
| Data Interface | SPI |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-SSOP |
| Package / Case [custom] | 0.209 in |
| Package / Case [custom] | 5.3 mm |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 192k |
| Supplier Device Package | 28-SSOP |
| Type | Audio, DAC |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3.3 V |
| Voltage Supply Source | Analog and Digital |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WM8740SEDS/V
DAC, Audio 24 b 192k SPI 28-SSOP
Documents
Technical documentation and resources
No documents available
