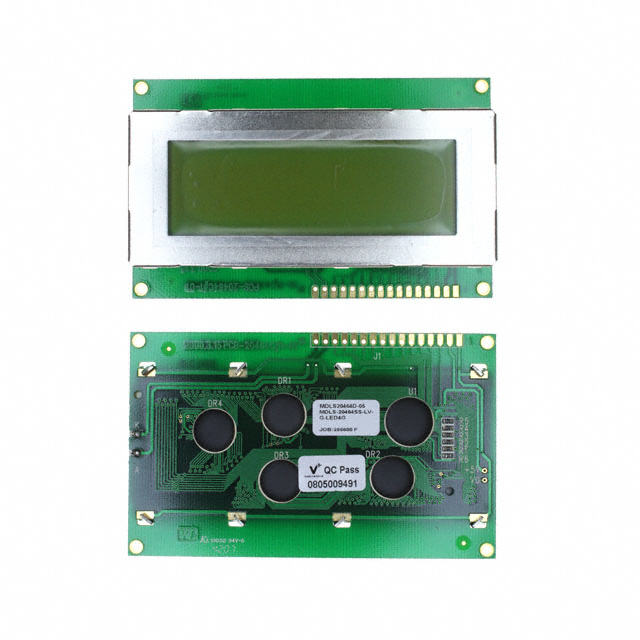

MDLS-20464-SS-LV-G-LED-04-G
ObsoleteVaritronix
LCD MOD 80DIG 20X4 TRANSFLCT GRN
Deep-Dive with AI
Search across all available documentation for this part.
MDLS-20464-SS-LV-G-LED-04-G
ObsoleteVaritronix
LCD MOD 80DIG 20X4 TRANSFLCT GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDLS-20464-SS-LV-G-LED-04-G |
|---|---|
| Background Color | Green |
| Backlight | LED - Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 2.9 mm |
| Character Size [z] | 4.7 mm |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.5 mm |
| Dot Size [y] | 0.5 mm |
| Interface | Parallel |
| Number of Characters | 80 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -5 °C |
| Outline L x W x H [x] | 98 mm |
| Outline L x W x H [y] | 60 mm |
| Outline L x W x H [z] | 9.4 mm |
| Viewing Area [x] | 76 mm |
| Viewing Area [y] | 25.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MDLS-20464-SS-LV-G-LED-04-G
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Green Parallel 98.00mm x 60.00mm x 9.40mm
Documents
Technical documentation and resources
