Technical Specifications
Parameters and characteristics for this part
| Specification | F0414A |
|---|---|
| DC Resistance (DCR) | 68 Ohm |
| Diameter - Shaft [diameter] | 0.25 in |
| Diameter - Shaft [diameter] | 6.35 mm |
| Duty Cycle | Intermittent |
| Mounting Type | Chassis Mount |
| Power (Watts) | 8.5 W |
| Shaft Detail | Clevis |
| Size / Dimension [x] | 29.46 mm |
| Size / Dimension [x] | 1.16 in |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [y] | 19.05 mm |
| Size / Dimension [z] | 19.05 mm |
| Size / Dimension [z] | 0.75 in |
| Stroke Length | 0.5 in |
| Stroke Length | 12.7 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Open Frame (Pull) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 14.24 | |
Description
General part information

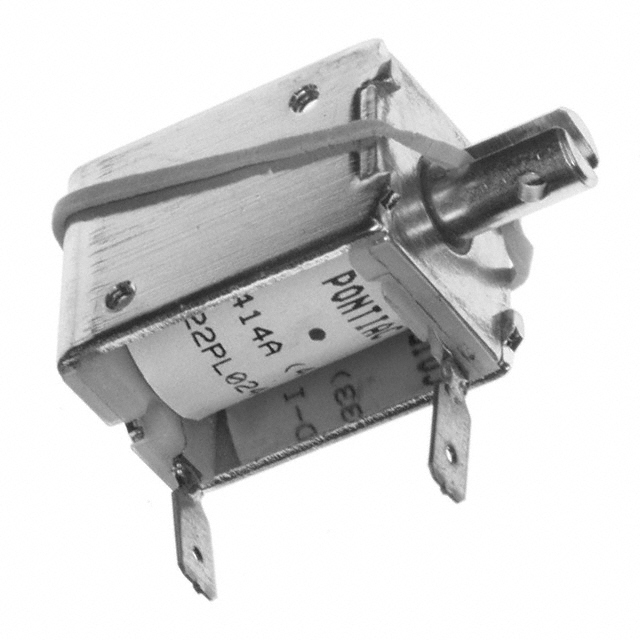

F0414A
Intermittent Duty Solenoid Open Frame (Pull) Type 0.500" (12.70mm) Stroke 24VDC Chassis Mount
