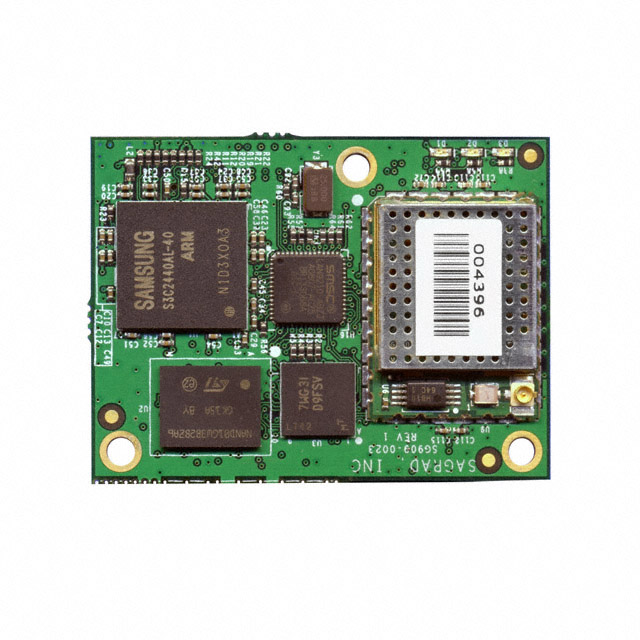

SG901-1047
ObsoleteSagrad Inc.
RF TXRX MODULE WIFI U.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SG901-1047
ObsoleteSagrad Inc.
RF TXRX MODULE WIFI U.FL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SG901-1047 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 450 mA |
| Current - Transmitting | 450 mA |
| Data Rate | 54 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 128 MB |
| Memory Size [custom] | 128 Mbit |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | Module |
| Power - Output | 12 dBm |
| Protocol | 802.11b/g |
| RF Family/Standard | WiFi |
| Sensitivity | -88 dBm |
| Serial Interfaces | UART, SPI |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SG901-1047
WiFi 802.11b/g Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
