WL520515
ActiveConntek
CORD 12AWG NEMAL5-20P-5-15R 1.5'
Deep-Dive with AI
Search across all available documentation for this part.
WL520515
ActiveConntek
CORD 12AWG NEMAL5-20P-5-15R 1.5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WL520515 |
|---|---|
| 1st Connector | NEMA L5-20P |
| 2nd Connector | NEMA 5-15R (3) |
| Approval Agency Marking | UL, cUL |
| Color | Blue, Yellow |
| Current Rating (Amps) [Max] | 20 A |
| Current Rating (Amps) [Min] | 15 A |
| Length | 1.5 ft |
| Length | 457.2 mm |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VDC |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WL520515

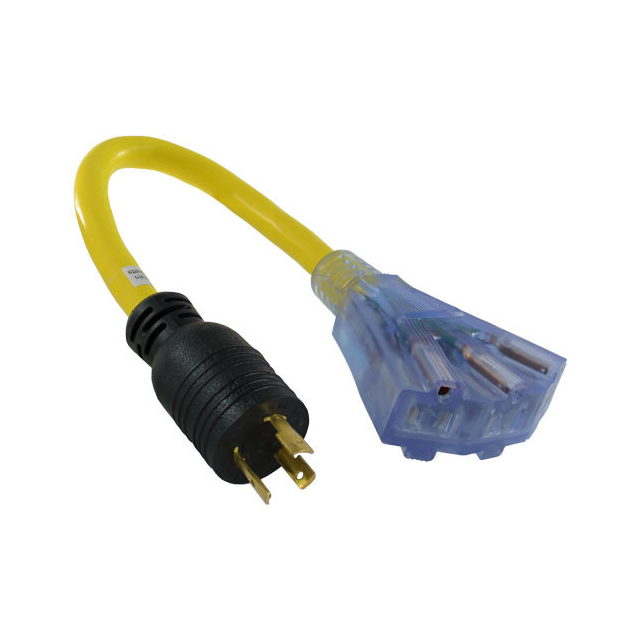

1.50' (457.2mm) Power Cord Blue, Yellow NEMA L5-20P To NEMA 5-15R (3)
Documents
Technical documentation and resources
No documents available
