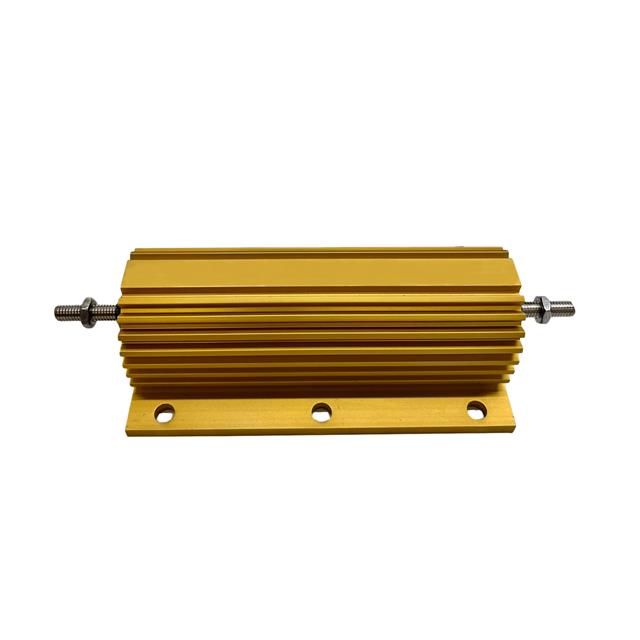

NHS250 50R F
ActiveARCOL
RES CHAS MNT 50 OHMS 1% 250W
Deep-Dive with AI
Search across all available documentation for this part.
NHS250 50R F
ActiveARCOL
RES CHAS MNT 50 OHMS 1% 250W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHS250 50R F |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Features | Pulse Withstanding, Non-Inductive |
| Height - Seated (Max) | 41.8 mm |
| Height - Seated (Max) [Max] [z] | 1.646 in |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Power (Watts) | 250 W |
| Resistance | 50 Ohms |
| Size / Dimension [x] | 4.319 " |
| Size / Dimension [x] | 109.7 mm |
| Size / Dimension [y] | 2.854 " |
| Size / Dimension [y] | 72.5 mm |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHS250 50R F
50 Ohms ±1% 250W Wirewound Chassis Mount Resistor
Documents
Technical documentation and resources
No documents available
