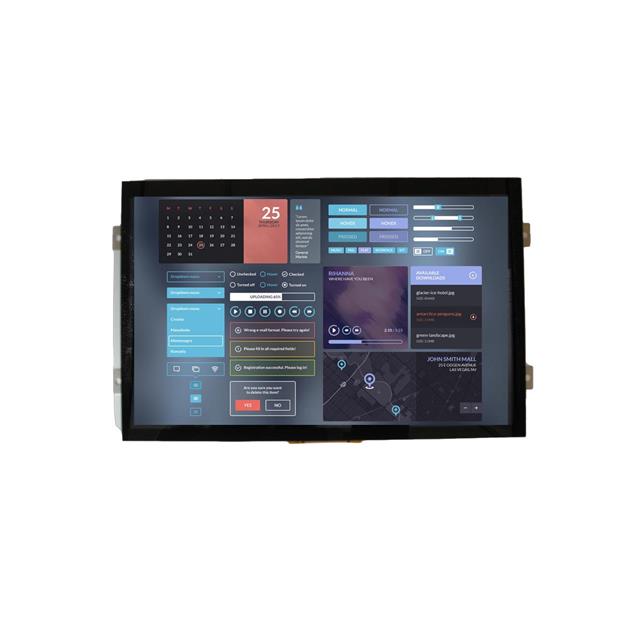

HDA1010WPTM-HDMI
ActiveHantronix Inc
10.1" HDMI IPS TFT PCAP MNT HOLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDA1010WPTM-HDMI
ActiveHantronix Inc
10.1" HDMI IPS TFT PCAP MNT HOLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDA1010WPTM-HDMI |
|---|---|
| Backlight | Without Backlight |
| Controller Type | ILI2511 |
| Diagonal Screen Size [custom] | 256.54 mm |
| Diagonal Screen Size [custom] | 10.1 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [y] | 0.17 mm |
| Dot Pitch [z] | 3.1 mm |
| Dot Pixels [x] | 1280 |
| Dot Pixels [y] | 800 |
| Graphics Color | Green, Red, Blue |
| Interface | HDMI, USB |
| Touchscreen | Capacitive |
| Viewing Area [x] | 218 mm |
| Viewing Area [y] | 136.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 212.16 | |
Description
General part information
HDA1010WPTM-HDMI
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color HDMI, USB 10.1" (256.54mm) 1280 x 800 (WXGA1)
