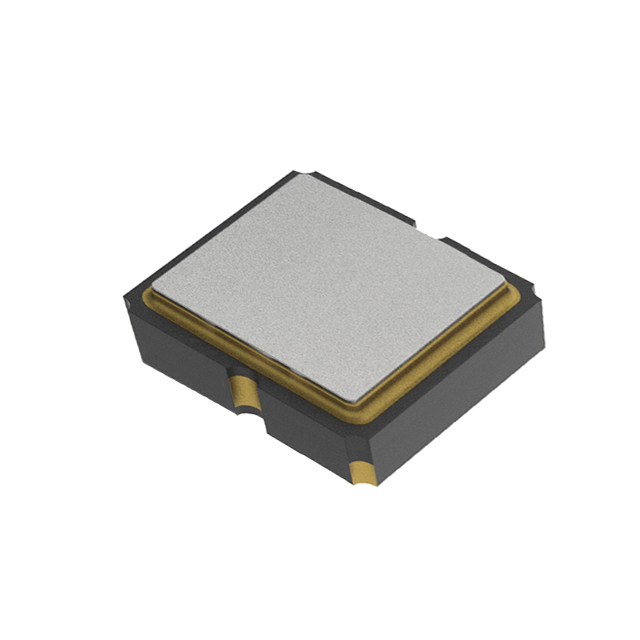

QM3344LEX-100.0M
ActivePletronics
XTAL OSC XO 100.0000MHZ CMOS TTL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QM3344LEX-100.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 35 mA |
| Current - Supply (Max) [Max] | 35 mA |
| Frequency | 100 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.96 mm |
| Height - Seated (Max) [Max] | 0.038 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS, TTL |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.93 | |
| 10 | $ 2.52 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.18 | |||
| 500 | $ 1.97 | |||
| 1000 | $ 1.88 | |||
| Digi-Reel® | 1 | $ 2.93 | ||
| 10 | $ 2.52 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.18 | |||
| 500 | $ 1.97 | |||
| 1000 | $ 1.88 | |||
| Tape & Reel (TR) | 3000 | $ 1.76 | ||
Description
General part information
QM3344LEX-100.0M
100 MHz XO (Standard) CMOS, TTL Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
