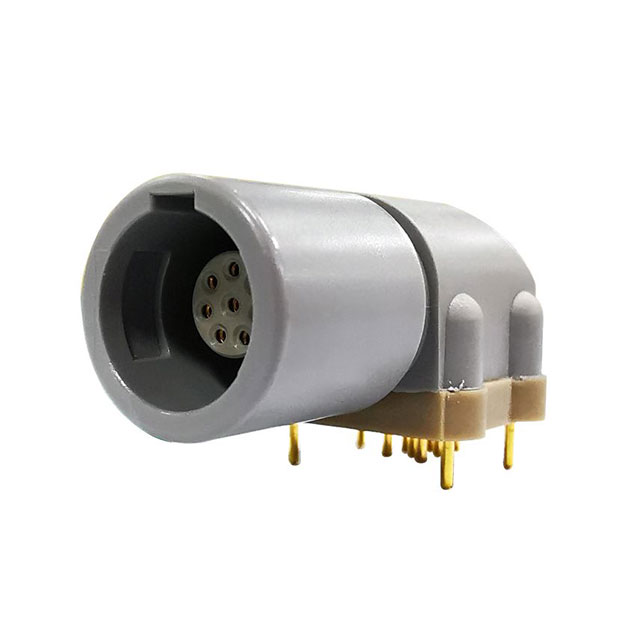

R-MPKGN0L200080
ActiveNextron
1P, ELBOW SOCKET, 8PIN, IP50
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R-MPKGN0L200080
ActiveNextron
1P, ELBOW SOCKET, 8PIN, IP50
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R-MPKGN0L200080 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.51 µm |
| Contact Finish Thickness - Mating | 20 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Detent Lock, Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Polyphenylsulfone (PPSU) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | 0 ° |
| Primary Material | Plastic |
| Shell Material | Polyphenylsulfone (PPSU) |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 16.60 | |
| 2 | $ 16.59 | |||
| 10 | $ 15.56 | |||
| 20 | $ 14.64 | |||
Description
General part information
R-MPKGN0L200080
8 Position Circular Connector Receptacle, Female Sockets Solder
