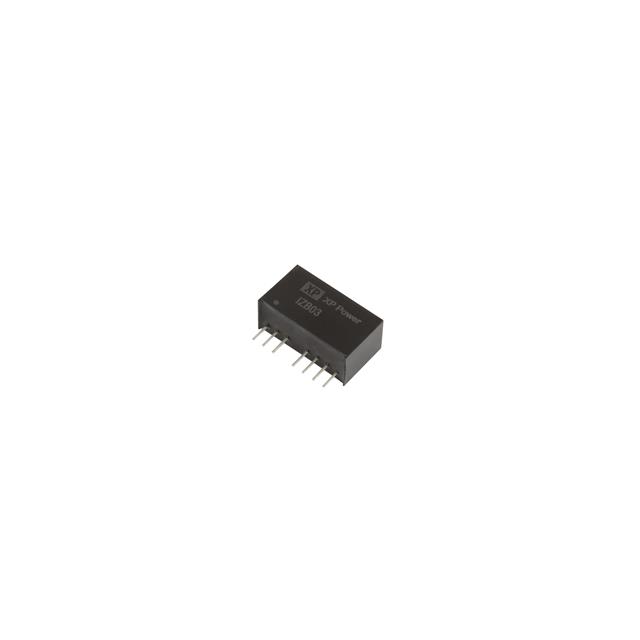

IZB0348S24
XP POWER
SINGLE O/P DC-DC PCB MOUNT 3W 1.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IZB0348S24
XP POWER
SINGLE O/P DC-DC PCB MOUNT 3W 1.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IZB0348S24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UKCA, UL |
| Current - Output (Max) [Max] | 125 mA |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SIP Module |
| Package / Case | 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 22 mm |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [y] | 9.5 mm |
| Size / Dimension [y] | 0.37 " |
| Size / Dimension [z] | 0.49 in |
| Size / Dimension [z] | 12.5 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 22 | $ 9.38 | |
Description
General part information
IZB0348S24
Isolated Module DC DC Converter 1 Output 24V 125mA 36V - 75V Input
