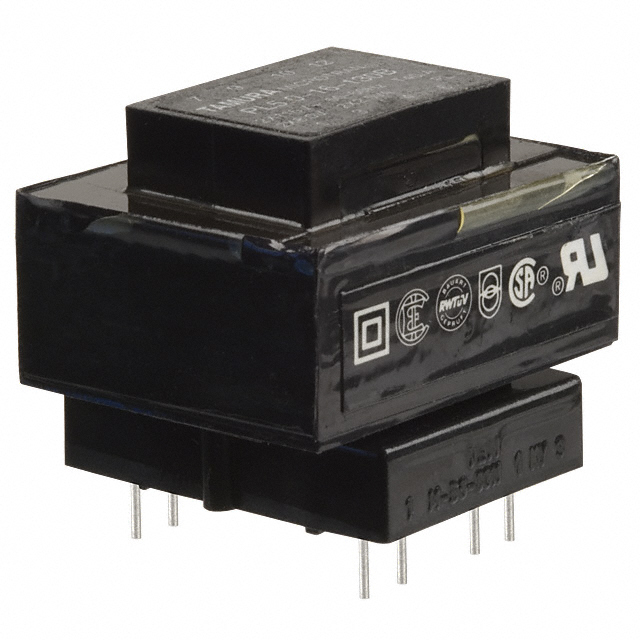

PL5.0-10-130B
ActiveTamura
PWR XFMR LAMINATED 5VA TH
Deep-Dive with AI
Search across all available documentation for this part.
PL5.0-10-130B
ActiveTamura
PWR XFMR LAMINATED 5VA TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PL5.0-10-130B |
|---|---|
| Center Tap | False |
| Current - Output (Max) [custom] | 500 mA |
| Current - Output (Max) [custom] | 1 A |
| Height - Seated (Max) [Max] [z] | 35.6 mm |
| Mounting Type | Through Hole |
| Power - Max [Max] | 5 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension [x] | 41.28 mm |
| Size / Dimension [y] | 36.37 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 3500 Vrms |
| Voltage - Primary | 115 V, 230 V |
| Voltage - Secondary (Full Load) [custom] | 5 V |
| Voltage - Secondary (Full Load) [custom] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.85 | |
| 10 | $ 7.54 | |||
| 25 | $ 6.39 | |||
| 54 | $ 6.29 | |||
| 108 | $ 5.97 | |||
| 270 | $ 5.91 | |||
| 540 | $ 5.83 | |||
| 1026 | $ 5.76 | |||
Description
General part information
PL5.0-10-130B
PWR XFMR LAMINATED 5VA TH
