122398

Active

Amphenol RF

RF / COAXIAL CONNECTOR, TNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG214, BRASS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	122398

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.86
		10	$ 6.18
		25	$ 5.82
		50	$ 5.67
		100	$ 5.52
		300	$ 5.25
	Bulk	1	$ 22.71
Newark	Each	1	$ 13.04
		5	$ 12.79
		10	$ 11.93
		25	$ 11.52
		50	$ 11.02
		100	$ 9.75
		250	$ 9.50

Description

General part information

122398

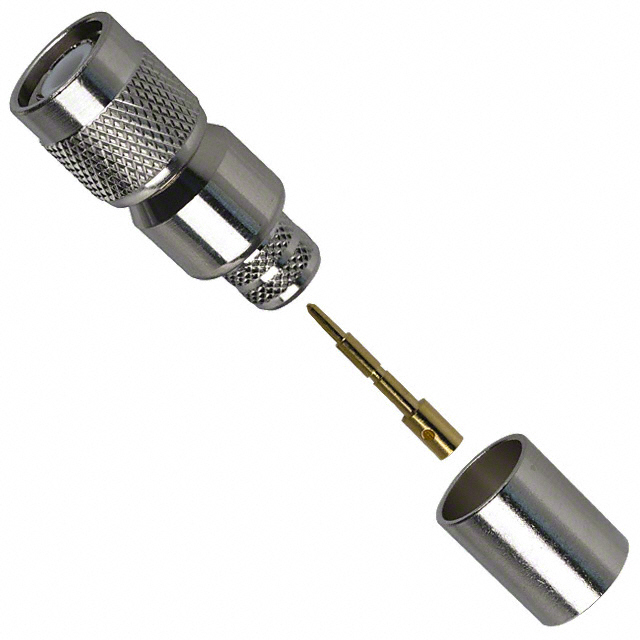

The 122398 is a clamp TNC Straight Plug for use with RG213, RG214, RG225, RG302, RG393, RG8, RG87, RG8A, RG9, RG9A and RG9B RF coaxial cables. It has nickel-plated brass body with gold-plated brass contacts and a natural PTFE (PTFE) insulator.

Documents

Technical documentation and resources

No documents available
