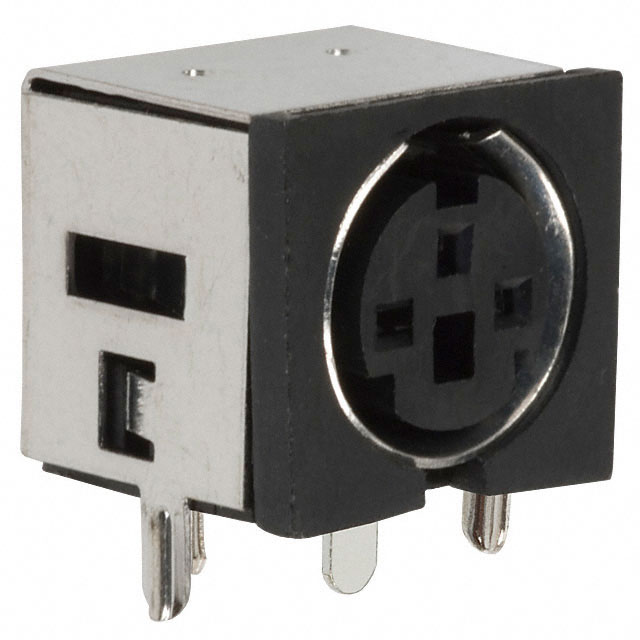

2MJ-0101A120
UnknownSingatron Enterprises Co Ltd
CONN RCPT FMALE MINI DIN 3P SLDR
Deep-Dive with AI
Search across all available documentation for this part.
2MJ-0101A120
UnknownSingatron Enterprises Co Ltd
CONN RCPT FMALE MINI DIN 3P SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2MJ-0101A120 |
|---|---|
| Applications | Video, Audio |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Pull |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Size - Insert | Mini DIN |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 100 VAC, 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.44 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.42 | |||
Description
General part information
2MJ-0101A120
3 Position Circular Connector Receptacle, Female Sockets Solder
