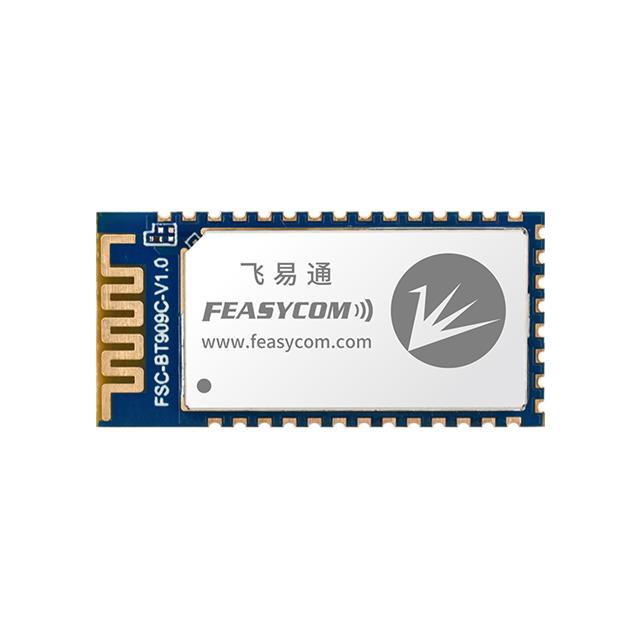

FSC-BT909C
ActiveShenzhen Feasycom Co., LTD
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
FSC-BT909C
ActiveShenzhen Feasycom Co., LTD
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FSC-BT909C |
|---|---|
| Antenna Type | Integrated, Chip |
| Data Rate | 3 Mbps |
| Frequency | 2.4 GHz |
| Modulation | 8DPSK, DQPSK, GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 52-SMD Module |
| Power - Output | 18.5 dBm |
| Protocol | Bluetooth v5.2 + EDR, Class 1 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -88 dBm |
| Serial Interfaces | PCM, AIO, USB, PWM, I2S, UART, PIO, I2C |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.30 | |
Description
General part information
FSC-BT909C
Bluetooth Bluetooth v5.2 + EDR, Class 1 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
No documents available
