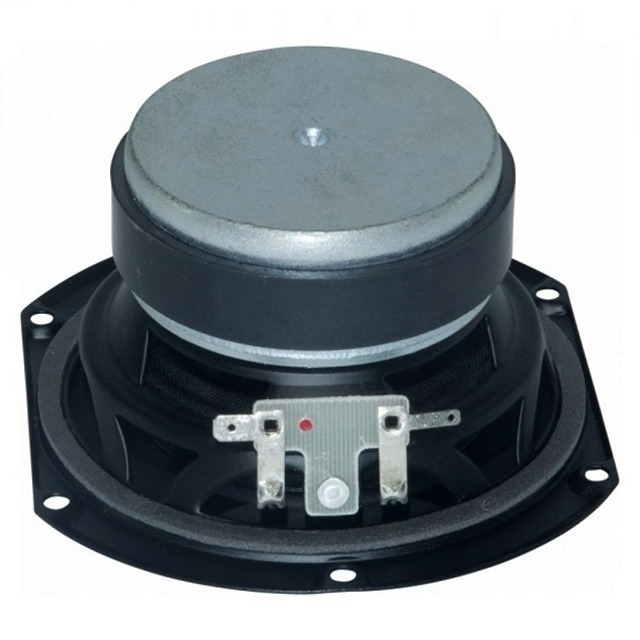

SDS-P830855
ActivePeerless by Tymphany
SPEAKR 6.43OHM 30W TOP PT 83.8DB
Deep-Dive with AI
Search across all available documentation for this part.
SDS-P830855
ActivePeerless by Tymphany
SPEAKR 6.43OHM 30W TOP PT 83.8DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDS-P830855 |
|---|---|
| Efficiency - dBA | 83.8 dBA |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 63.26 Hz |
| Frequency Range [Max] | 5 kHz |
| Frequency Range [Min] | 60 Hz |
| Height - Seated (Max) [Max] [z] | 2.492 in |
| Height - Seated (Max) [Max] [z] | 63.3 mm |
| Impedance | 6.43 Ohms |
| Material - Cone [custom] | Paper, Coated |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 30 W |
| Shape | Round |
| Size / Dimension [diameter] | 123.3 mm |
| Size / Dimension [diameter] | 4.854 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Woofer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 48 | $ 19.65 | |
Description
General part information
SDS-P830855
6.43 Ohms Woofer Speaker 30 W 60 Hz ~ 5 kHz Top Round
Documents
Technical documentation and resources
No documents available
