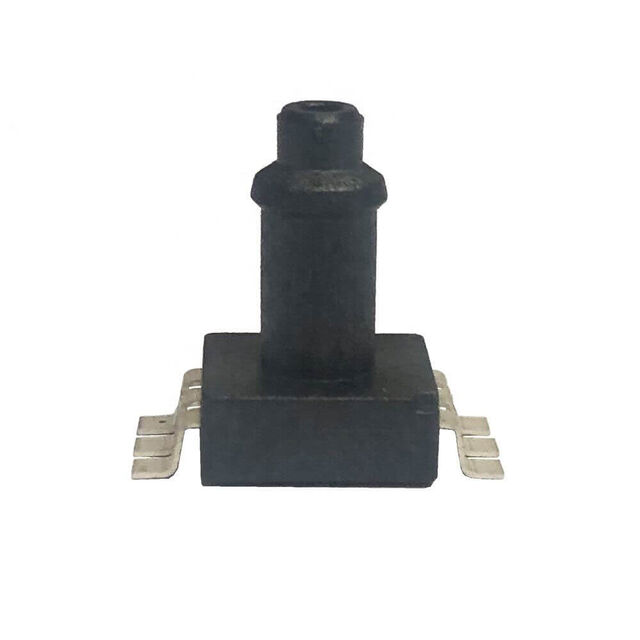

XGZP6877A700KPG
ActiveCFSensor
PRESSURE SENSOR 101.5PSI(0~700KP
Deep-Dive with AI
Search across all available documentation for this part.
XGZP6877A700KPG
ActiveCFSensor
PRESSURE SENSOR 101.5PSI(0~700KP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XGZP6877A700KPG |
|---|---|
| Accuracy | 2.5 % |
| Applications | Board Mount |
| Features | Temperature Compensated, Amplified Output |
| Maximum Pressure | 1050 kPa |
| Maximum Pressure [Max] | 152.29 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure | 700 kPa |
| Operating Pressure | 101.53 PSI |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog |
| Package / Case | 6-SMD Module |
| Port Size | 4.93 mm |
| Port Size | Male |
| Port Size | 0.194 " |
| Port Style | Barbed |
| Pressure Type | Gauge |
| Supplier Device Package | 6-SMT |
| Termination Style | Surface Mount (SMD,SMT) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 3 | $ 8.40 | |
| 9 | $ 8.05 | |||
| 24 | $ 7.70 | |||
| 102 | $ 7.35 | |||
| 501 | $ 6.00 | |||
Description
General part information
XGZP6877A700KPG
Pressure Sensor 101.53PSI (700kPa) Gauge Male - 0.194" (4.93mm) Tube 0.5 V ~ 4.5 V 6-SMD Module
Documents
Technical documentation and resources
No documents available
