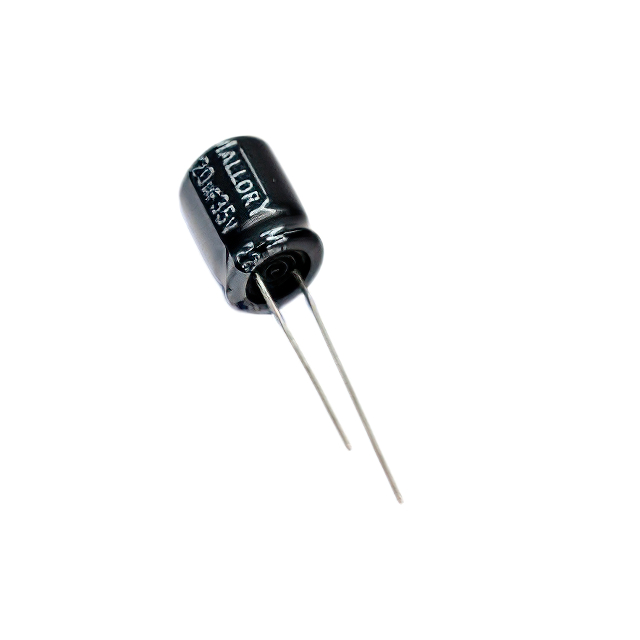

SEK221M035ST
ActiveMALLORY
CAP ALUM 220UF 20% 35V RADIAL TH
Deep-Dive with AI
Search across all available documentation for this part.
SEK221M035ST
ActiveMALLORY
CAP ALUM 220UF 20% 35V RADIAL TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SEK221M035ST |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 840 mOhm |
| Height - Seated (Max) [Max] | 15 mm |
| Height - Seated (Max) [Max] | 0.591 " |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 441 mA |
| Ripple Current @ Low Frequency | 315 mA |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.77 | |
| Bulk | 1 | $ 0.96 | ||
| 10 | $ 0.60 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.41 | |||
| 500 | $ 0.34 | |||
Description
General part information
SEK221M035ST
220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 840mOhm @ 120Hz 2000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
