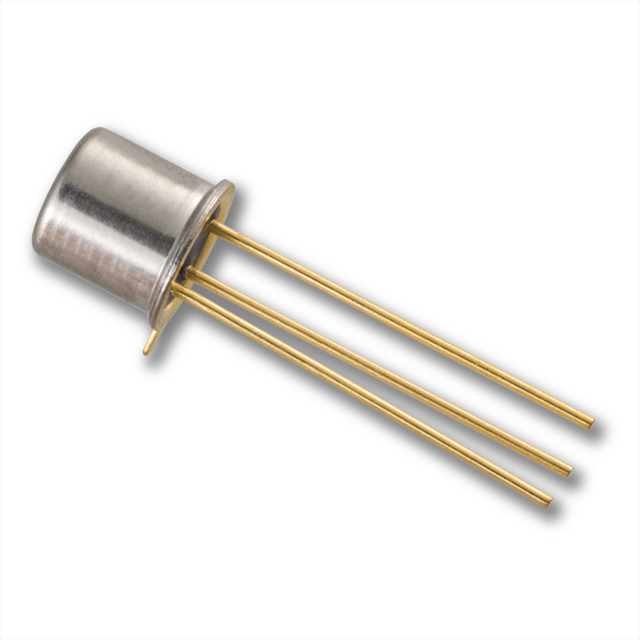

PAD20 TO-72 3L
ActiveLinear Integrated Systems, Inc.
DIODE GEN PURP 45V 50MA TO72-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAD20 TO-72 3L
ActiveLinear Integrated Systems, Inc.
DIODE GEN PURP 45V 50MA TO72-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PAD20 TO-72 3L |
|---|---|
| Capacitance @ Vr, F | 1.5 pF |
| Current - Average Rectified (Io) | 50 mA |
| Current - Reverse Leakage @ Vr | 20 pA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | TO-72-3 Metal Can |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | TO-72-3 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.73 | |
| 10 | $ 6.08 | |||
| 25 | $ 5.80 | |||
| 100 | $ 5.03 | |||
| 250 | $ 4.81 | |||
| 500 | $ 4.38 | |||
| 1000 | $ 3.82 | |||
| 2500 | $ 3.68 | |||
Description
General part information
PAD20 TO-72 3L
Diode 45 V 50mA Through Hole TO-72-3
