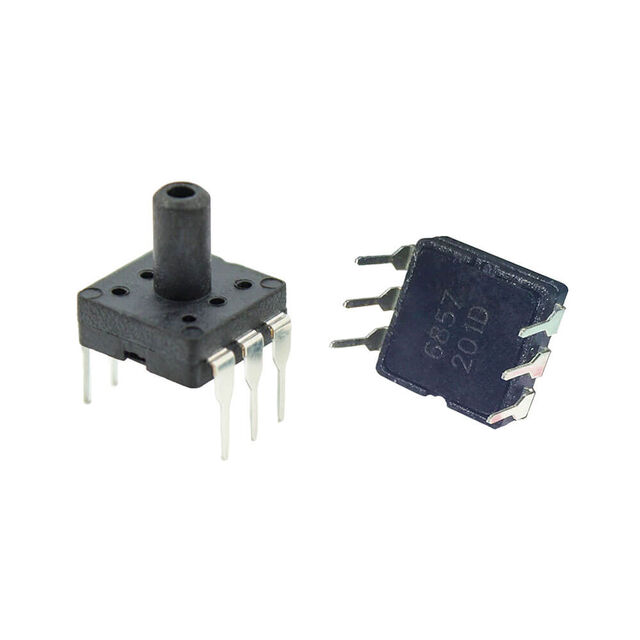

XGZP6857D005KPG
ActiveCFSensor
PRESSURE SENSOR 0.72PSI(0~5KPA)
Deep-Dive with AI
Search across all available documentation for this part.
XGZP6857D005KPG
ActiveCFSensor
PRESSURE SENSOR 0.72PSI(0~5KPA)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XGZP6857D005KPG |
|---|---|
| Accuracy | 2.5 % |
| Applications | Board Mount |
| Features | Digital Output, Temperature Compensated |
| Maximum Pressure | 25 kPa |
| Maximum Pressure | 3.63 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 0.72 PSI |
| Operating Pressure | 5 kPa |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Output | I2C |
| Output Type | Digital - I2C |
| Package / Case | 6-DIP |
| Port Size | Tube, Male |
| Port Size [x] | 3.15 mm |
| Port Size [x] | 0.122 " |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Supplier Device Package | 6-DIP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5 | $ 7.80 | |
| 10 | $ 7.47 | |||
| 25 | $ 7.15 | |||
| 100 | $ 6.83 | |||
| 500 | $ 5.80 | |||
Description
General part information
XGZP6857D005KPG
Pressure Sensor 0.72PSI (5kPa) Gauge Male - 0.122" (3.15mm) Tube I2C 6-DIP
Documents
Technical documentation and resources
No documents available
