ESP32-MINI-1U-H4
ActiveEspressif Systems
RF TXRX MOD BT WIFIU.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESP32-MINI-1U-H4
ActiveEspressif Systems
RF TXRX MOD BT WIFIU.FL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESP32-MINI-1U-H4 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving [Max] | 118 mA |
| Current - Receiving [Min] | 112 mA |
| Current - Transmitting [Max] | 379 mA |
| Current - Transmitting [Min] | 260 mA |
| Data Rate | 150 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 448 kB, 4 MB, 536 kB |
| Modulation | DQPSK, 8DPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 55-SMD Module |
| Power - Output | 19.5 dBm |
| Protocol | 802.11b/g/n, Class 3, Class 1, Class 2, Bluetooth v4.2 +EDR |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -97 dBm |
| Serial Interfaces | I2S, GPIO, PWM, SDIO, I2C, UART, SPI, ADC |
| Utilized IC / Part | ESP32-U4WDH |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.38 | |
| Digi-Reel® | 1 | $ 2.38 | ||
| Tape & Reel (TR) | 6500 | $ 2.38 | ||
Description
General part information

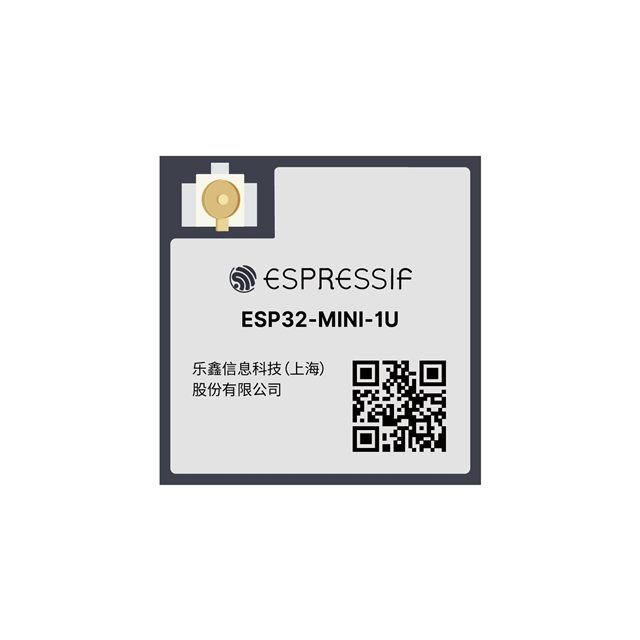

ESP32-MINI-1U-H4
Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
