ADP2025-B
ActiveAcute Technology, Inc.
DIFF. PROBE 25MHZ BATT 20X/200X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADP2025-B
ActiveAcute Technology, Inc.
DIFF. PROBE 25MHZ BATT 20X/200X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP2025-B |
|---|---|
| Attenuation Value [custom] | 20:1, 200:1 |
| Bandwidth | 25 MHz |
| Cable Length | 240 mm |
| Cable Length | 9.449 in |
| Capacitance - Input | 1 pF |
| Includes | Probes, Battery |
| Resistance - Input | 10 M |
| Type | Differential |
| Voltage - Max | 600 V, 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 650.00 | |
Description
General part information
ADP2025-B

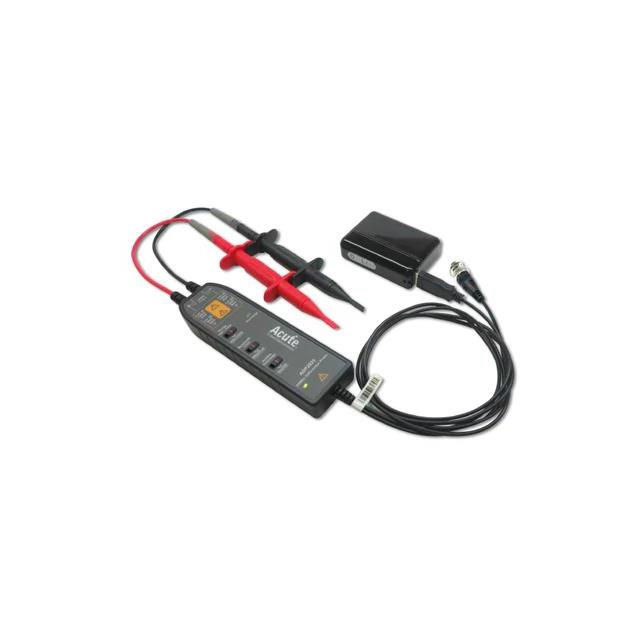

20:1, 200:1 Differential 25MHz 9.449" (240.00mm) Black and Red Oscilloscope Probe Test Lead 10M Input Resistance CAT II 1000V, CAT III 600V
