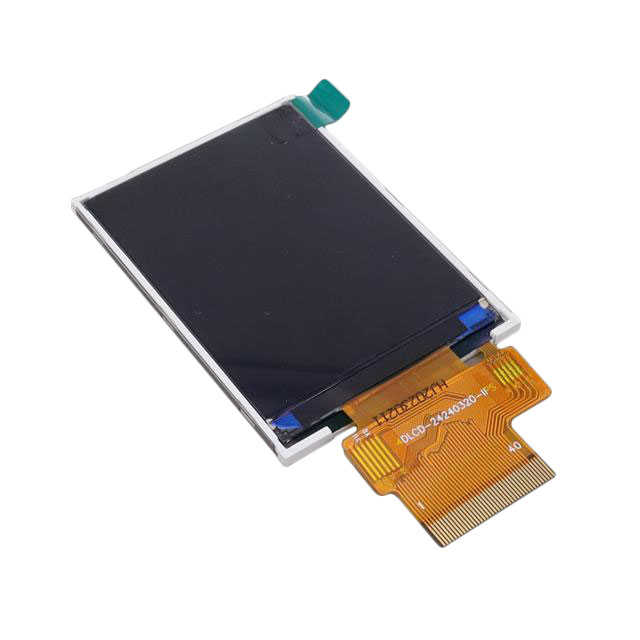

4DLCD-24320240-IPS
Active4D LCD Pty Ltd
2.4", 240X320 PIXELS, FULL COLOU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4DLCD-24320240-IPS
Active4D LCD Pty Ltd
2.4", 240X320 PIXELS, FULL COLOU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4DLCD-24320240-IPS |
|---|---|
| Backlight | LED - Red/Green/Blue/White |
| Diagonal Screen Size | 60.96 mm |
| Diagonal Screen Size [custom] | 2.4 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color, IPS (In-Plane Switching) |
| Dot Pitch [x] | 0.15 mm |
| Dot Pitch [y] | 0.15 mm |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 320 |
| Graphics Color | Green, Red, Blue |
| Interface | MCU, SPI |
| Touchscreen | Non-Touch |
| Viewing Area [custom] | 36.72 mm |
| Viewing Area [custom] | 48.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.09 | |
| 10 | $ 17.90 | |||
| 100 | $ 15.22 | |||
| 500 | $ 14.40 | |||
Description
General part information
4DLCD-24320240-IPS
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) MCU, SPI 2.4" (60.96mm) 240 x 320
