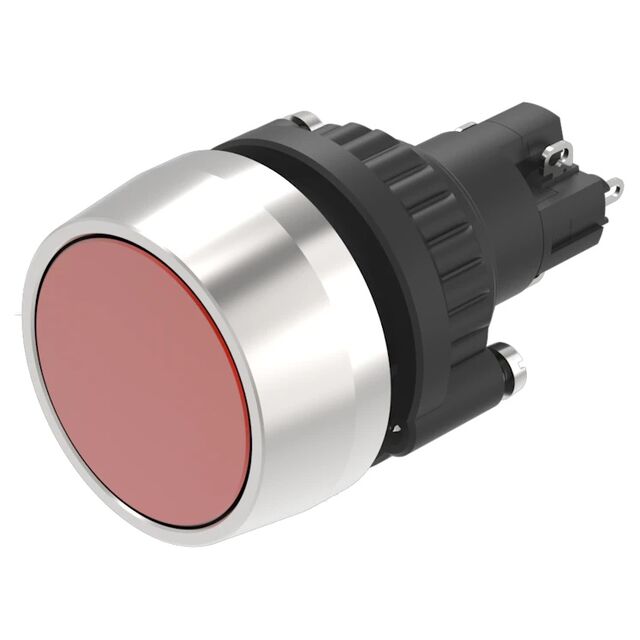

K14-131.121110
ActiveEAO
PUSHBUTTON, MOMENTARY, 250 V @ 5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K14-131.121110
ActiveEAO
PUSHBUTTON, MOMENTARY, 250 V @ 5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K14-131.121110 |
|---|---|
| Actuator Type | Flush, Button, Round |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 2 A, 5 A |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 43.91 | |
Description
General part information
K14-131.121110
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
