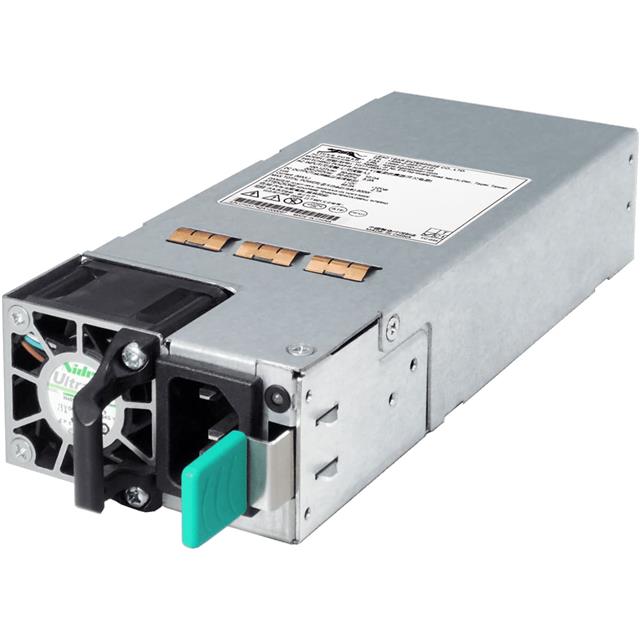

TG17-0800-01
ActiveLead Year Enterprise
AC-DC SWTCHNG PWR SPPLY 12V 800W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TG17-0800-01
ActiveLead Year Enterprise
AC-DC SWTCHNG PWR SPPLY 12V 800W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TG17-0800-01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cUL, TUV, CB, CCC, UL |
| Efficiency | 94 % |
| Features | Current Share, Hot Swappable |
| Mounting Type | Chassis Mount |
| Power (Watts) | 800 W |
| Size / Dimension [x] | 185 mm |
| Size / Dimension [x] | 7.28 in |
| Size / Dimension [y] | 73.5 mm |
| Size / Dimension [y] | 2.89 in |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 40 mm |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 230.50 | |
| 5 | $ 221.30 | |||
| 10 | $ 165.00 | |||
| 25 | $ 158.00 | |||
Description
General part information
TG17-0800-01
Enclosed AC DC Converters Output 12V 90 ~ 264 VAC Input
