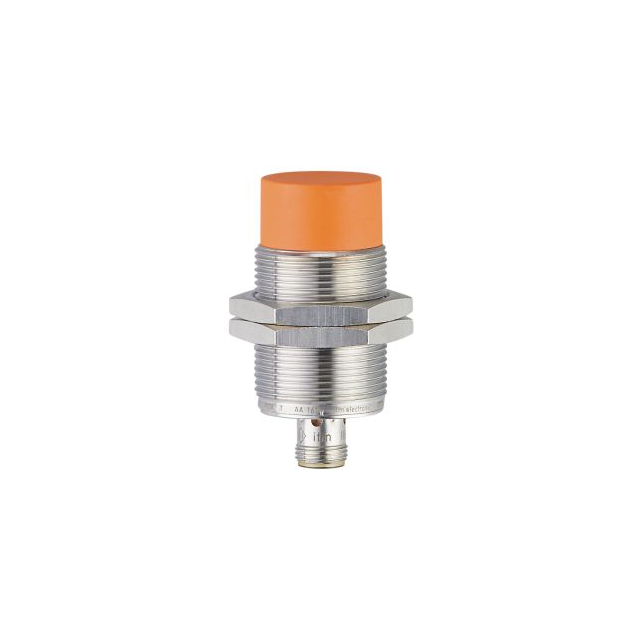

IIS227
Activeifm efector, inc.
SENSOR PROX INDUCTIVE 22MM CYL
Deep-Dive with AI
Search across all available documentation for this part.
IIS227
Activeifm efector, inc.
SENSOR PROX INDUCTIVE 22MM CYL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IIS227 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP69K, IP68, IP66, IP67, IP65 |
| Material - Body | Nickel-Plated Brass, Polybutylene Terephthalate (PBT) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 22 mm |
| Sensing Distance | 0.866 in |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 84.00 | |
Description
General part information
IIS227
SENSOR PROX INDUCTIVE 22MM CYL
Documents
Technical documentation and resources
No documents available
