55016J
ActiveCully-Minerallac

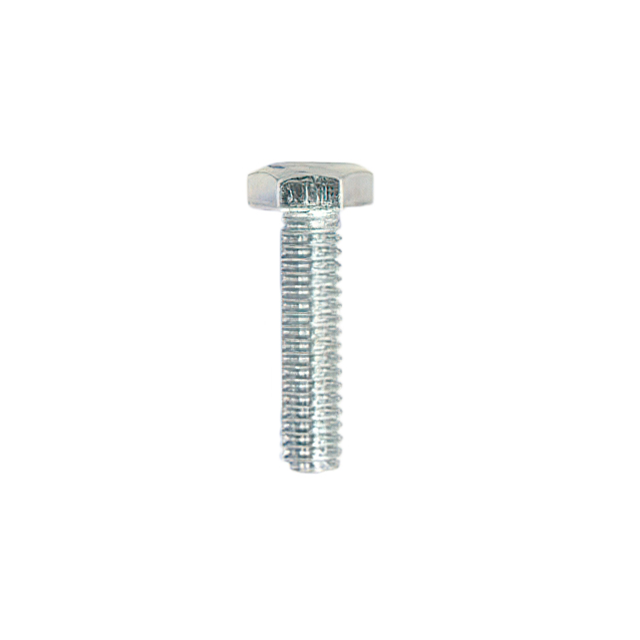

1/4-20 X 1 HEX HEAD BOLT ZP. SIZ
Deep-Dive with AI
Search across all available documentation for this part.
55016J
ActiveCully-Minerallac
1/4-20 X 1 HEX HEAD BOLT ZP. SIZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 55016J |
|---|---|
| Drive Type | Hex Socket |
| Head Diameter [diameter] | 11.11 mm |
| Head Diameter [diameter] | 0.438 " |
| Head Height | 0.156 " |
| Head Height | 3.97 mm |
| Length - Below Head | 25.4 mm |
| Length - Below Head | 1 in |
| Length - Overall [x] | 1.156 in |
| Length - Overall [x] | 29.36 mm |
| Plating | Zinc |
| Screw Head Type | Hex Head |
| Thread Size | 1/4"-20 |
| Type | Shoulder Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.08 | |
Description
General part information
55016J
1/4"-20 Hex Head Shoulder Screw Hex Socket Drive Steel
Documents
Technical documentation and resources
No documents available
