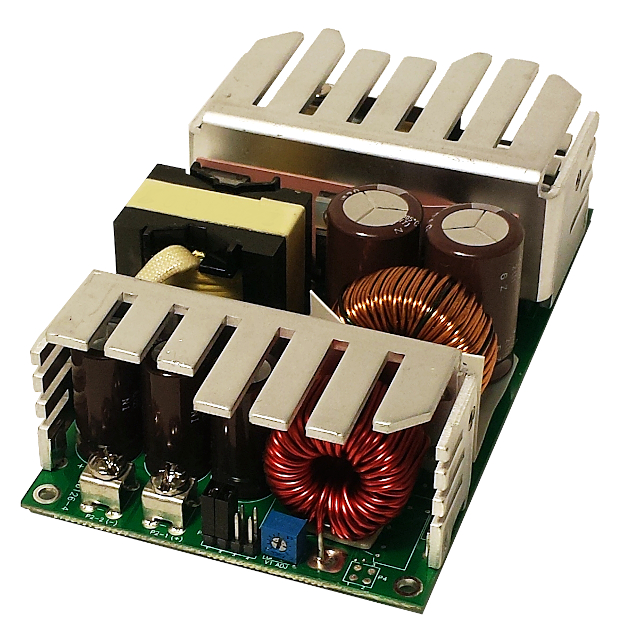

1010886
ActiveIntegrated Power Designs
AC/DC CONVERTER 2.5V 225W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1010886
ActiveIntegrated Power Designs
AC/DC CONVERTER 2.5V 225W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010886 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output 1 | 53 A |
| Efficiency | 85 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 225 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [z] | 38 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 243.82 | |
| 25 | $ 232.93 | |||
| 100 | $ 224.63 | |||
Description
General part information
1010886
Open Frame AC DC Converters 1 Output 2.5V 100 ~ 240 VAC Input
