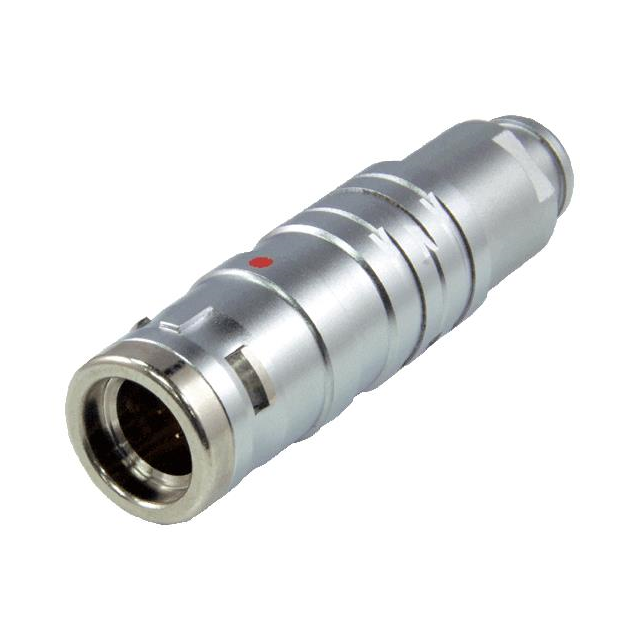

R-F0KS0602C1030
ActiveNextron
0K, STRAIGHT PLUG, 6PIN, IP68
Deep-Dive with AI
Search across all available documentation for this part.
R-F0KS0602C1030
ActiveNextron
0K, STRAIGHT PLUG, 6PIN, IP68
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R-F0KS0602C1030 |
|---|---|
| Backshell Material, Plating | Copper Alloy, Nickel |
| Cable Opening [Max] [custom] | 0.118 in |
| Cable Opening [Max] [custom] | 3 mm |
| Cable Opening [Min] [custom] | 0.102 in |
| Cable Opening [Min] [custom] | 2.6 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2.5 A |
| Fastening Type | Detent Lock, Push-Pull |
| Features | Backshell |
| Ingress Protection | IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | 0 ° |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | 0K |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 33.43 | |
| 2 | $ 33.43 | |||
| 10 | $ 31.34 | |||
| 20 | $ 29.50 | |||
Description
General part information
R-F0KS0602C1030
6 Position Circular Connector Plug, Male Pins Solder Cup
