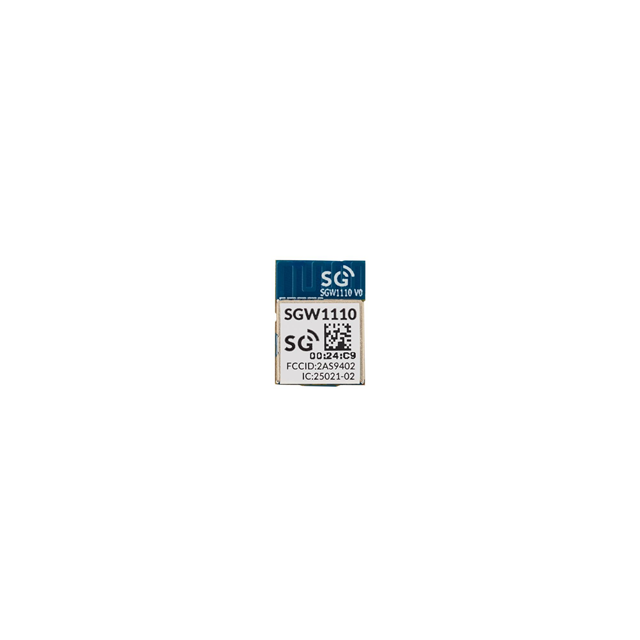

SGW1110
ActiveSG Wireless
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
SGW1110
ActiveSG Wireless
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SGW1110 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Transmitting | 4.8 mA |
| Data Rate | 12 Mbps |
| Memory Size | 1 MB, 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Output | 0 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | USB, ADC, UART, SPI, I2S |
| Utilized IC / Part | nRF52840 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SGW1110
Bluetooth Bluetooth v5.0 Transceiver Module Integrated, Chip Surface Mount
Documents
Technical documentation and resources
No documents available
