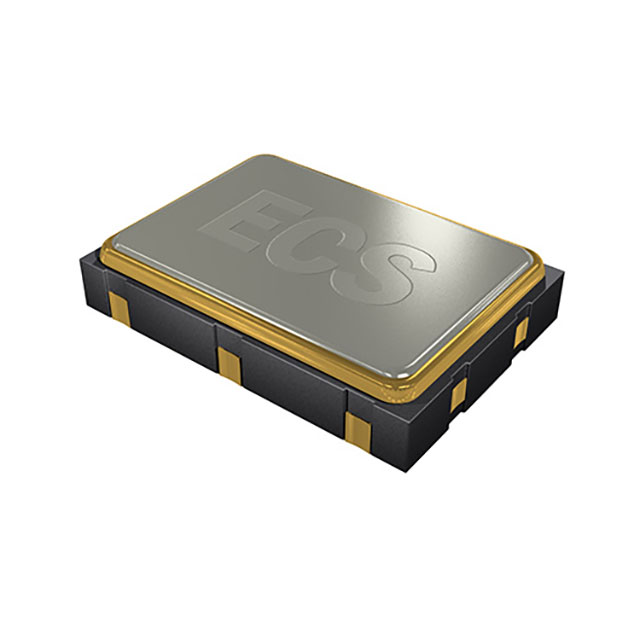

ECX-L37CN-100.000-TR
ActiveECS Inc.
XTAL OSC XO 100 MHZ LVDS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECX-L37CN-100.000-TR
ActiveECS Inc.
XTAL OSC XO 100 MHZ LVDS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ECX-L37CN-100.000-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 16 mA |
| Current - Supply (Max) [Max] | 18 mA |
| Frequency | 100 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.067 in |
| Height - Seated (Max) [Max] | 1.7 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.39 | |
| 10 | $ 4.65 | |||
| 50 | $ 4.20 | |||
| 100 | $ 4.02 | |||
| 500 | $ 3.63 | |||
| Digi-Reel® | 1 | $ 5.39 | ||
| 10 | $ 4.65 | |||
| 50 | $ 4.20 | |||
| 100 | $ 4.02 | |||
| 500 | $ 3.63 | |||
| Tape & Reel (TR) | 1000 | $ 3.13 | ||
Description
General part information
ECX-L37CN-100.000-TR
100 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
