CS42518-DQZR
ObsoleteCirrus Logic Inc.
AUDIO CODEC 2ADC / 8DAC 24-BIT 64-PIN LQFP T/R
Deep-Dive with AI
Search across all available documentation for this part.
CS42518-DQZR
ObsoleteCirrus Logic Inc.
AUDIO CODEC 2ADC / 8DAC 24-BIT 64-PIN LQFP T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CS42518-DQZR |
|---|---|
| Data Interface | Serial |
| Dynamic Range, ADCs / DACs (db) Typ [custom] | 110 db |
| Dynamic Range, ADCs / DACs (db) Typ [custom] | 114 db |
| Mounting Type | Surface Mount |
| Number of ADCs / DACs [custom] | 2 |
| Number of ADCs / DACs [custom] | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

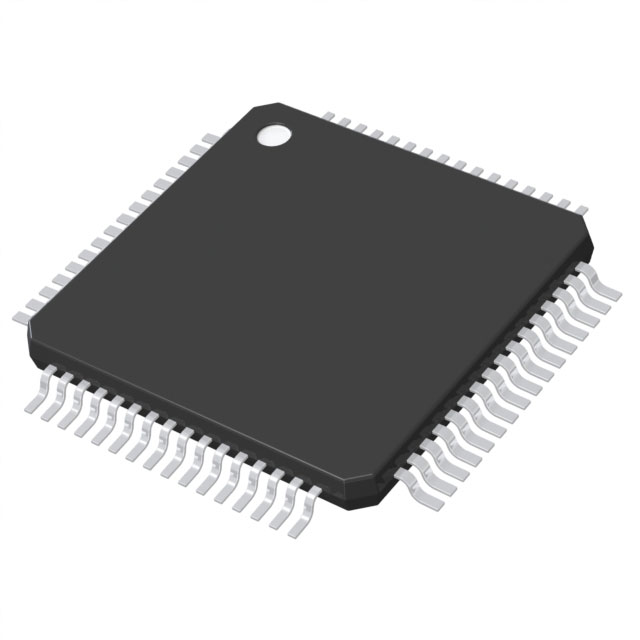

| Package / Case | 64-LQFP |
| Resolution (Bits) | 24 b |
| Sigma Delta | True |
| Supplier Device Package | 64-LQFP (10x10) |
| Type | Audio |
| Voltage - Supply, Analog [Max] | 5.25 V |
| Voltage - Supply, Analog [Min] | 4.75 V |
| Voltage - Supply, Digital [Max] | 5.25 V |
| Voltage - Supply, Digital [Min] | 3.13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CS42518-DQZR
Audio Interface 24 b Serial 64-LQFP (10x10)
