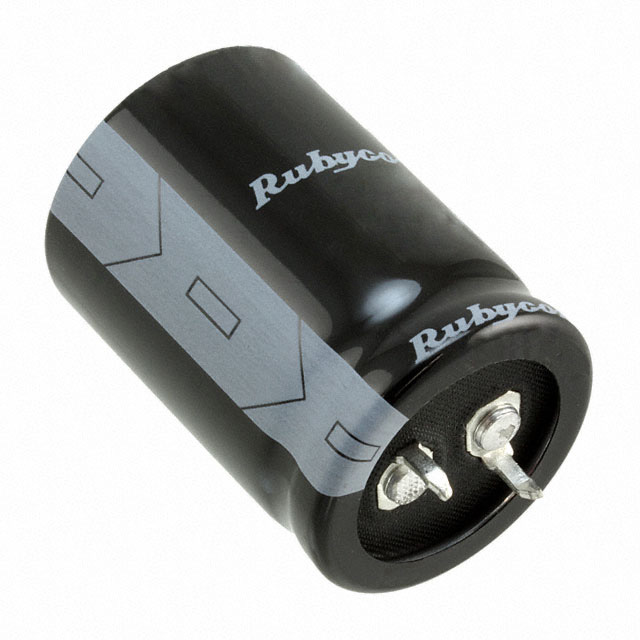

450HXC220MEFCSN35X30
ActiveRubycon
CAP ALUM 220UF 20% 450V SNAP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
450HXC220MEFCSN35X30
ActiveRubycon
CAP ALUM 220UF 20% 450V SNAP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 450HXC220MEFCSN35X30 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current @ High Frequency | 2.59 A |
| Ripple Current @ Low Frequency | 1.85 A |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
450HXC220MEFCSN35X30
220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
