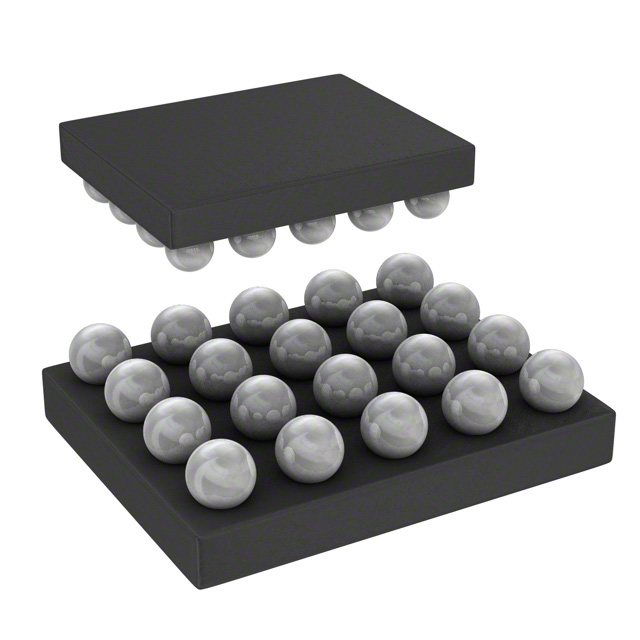

WM9094ECS/R
ObsoleteCirrus Logic Inc.
IC AMP D/AB MONO 2W 20W-CSP
Deep-Dive with AI
Search across all available documentation for this part.
WM9094ECS/R
ObsoleteCirrus Logic Inc.
IC AMP D/AB MONO 2W 20W-CSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM9094ECS/R |
|---|---|
| Features | Thermal Protection, Depop |
| Max Output Power x Channels @ Load | 4 Ohm, 2 W, 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1-Channel (Mono) |
| Package / Case | 20-WFBGA, WLCSP |
| Supplier Device Package | 20-WCSP |
| Supplier Device Package [x] | 2.53 |
| Supplier Device Package [y] | 2.07 |
| Type | Class AB, Class D |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WM9094ECS/R
Amplifier IC 1-Channel (Mono) Class D, Class AB 20-WCSP (2.53x2.07)
Documents
Technical documentation and resources
No documents available
