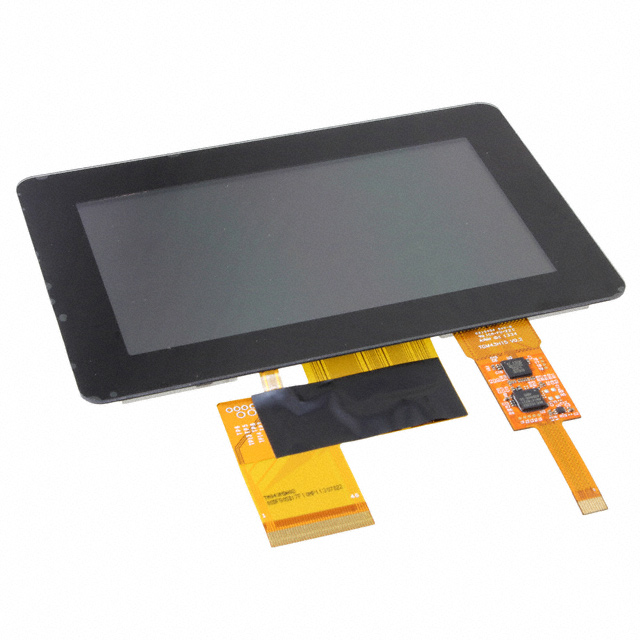

F04E-0101
ActiveTPK America LLC
TOUCH DISPLAY FUSION 4 4.3" PCAP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F04E-0101
ActiveTPK America LLC
TOUCH DISPLAY FUSION 4 4.3" PCAP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F04E-0101 |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size | 109.22 mm |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.2 mm |
| Dot Pitch [y] | 0.2 mm |
| Dot Pixels [x] | 480 |
| Dot Pixels [y] | 272 |
| Graphics Color | Green, Red, Blue |
| Interface | USB, I2C |
| Touchscreen | Capacitive |
| Viewing Area [x] | 95.04 mm |
| Viewing Area [y] | 53.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 3000 | $ 75.14 | |
Description
General part information
F04E-0101
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, USB 4.3" (109.22mm) 480 x 272
Documents
Technical documentation and resources
