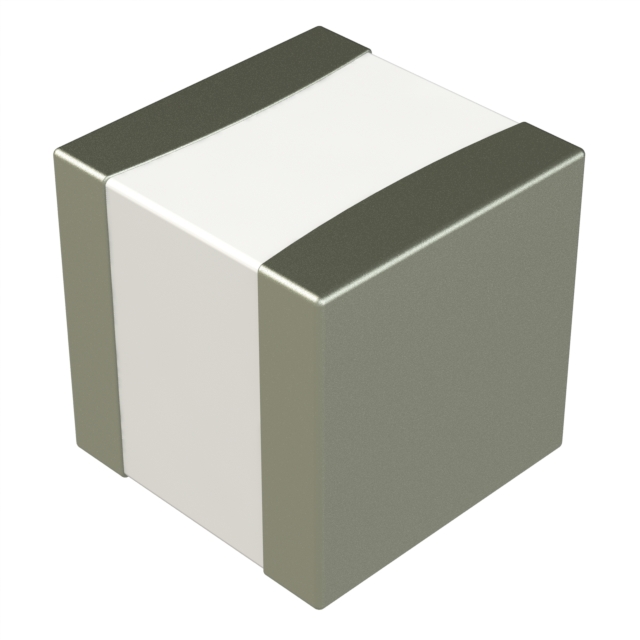

100A100GTN150X
ActiveAmerican Technical Ceramics
CAP CER 10PF 150V P90 0505
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100A100GTN150X
ActiveAmerican Technical Ceramics
CAP CER 10PF 150V P90 0505
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100A100GTN150X |
|---|---|
| Applications | RF, High Frequency, Bypass, Microwave, Decoupling |
| Capacitance | 10 pF |
| Features | Low ESL, High Q, Low Loss |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0505 |
| Package / Case | 1313 Metric |
| Size / Dimension [x] | 0.055 in |
| Size / Dimension [x] | 1.4 mm |
| Size / Dimension [y] | 0.055 in |
| Size / Dimension [y] | 1.4 mm |
| Thickness (Max) | 1.45 mm |
| Thickness (Max) [Max] [custom] | 0.057 in |
| Tolerance | 2 % |
| Voltage - Rated | 150 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 4.10 | |
Description
General part information
100A100GTN150X
10 pF ±2% 150V Ceramic Capacitor P90 0505 (1313 Metric)
