SP-4-FN
ActiveAMPHENOL AUDIO
SPEAKER / LOUDSPEAKER AUDIO CONNECTOR, SP SERIES, 4 CONTACT, PLUG, CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
SP-4-FN
ActiveAMPHENOL AUDIO
SPEAKER / LOUDSPEAKER AUDIO CONNECTOR, SP SERIES, 4 CONTACT, PLUG, CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-4-FN |
|---|---|
| Color | Silver |
| Connector Type | Plug, Non-Gendered |
| Contact Finish - Mating | Silver |
| Fastening Type | Latch Lock |
| Features | Backshell |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SP-4-FN

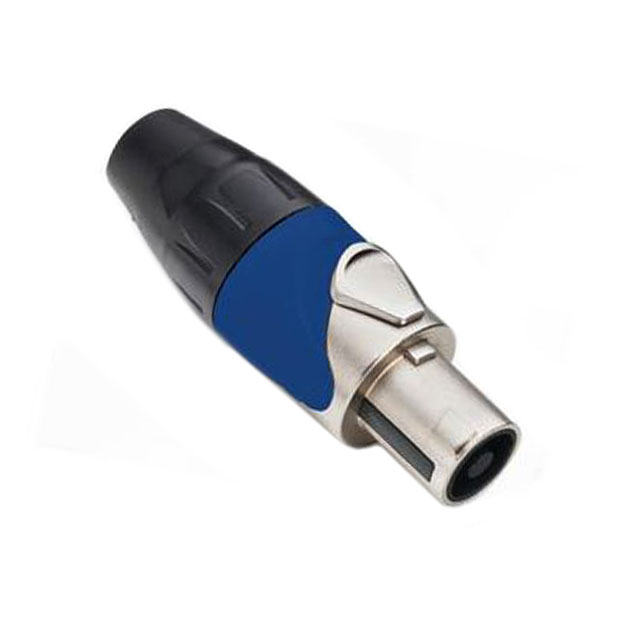

The SP-4-FN from Amphenol is a SP series 4 pole loud speaker cable connector plug with screw terminals. It is made of nickel plated zinc alloy shell completely intermateable with industry standard loudspeaker connections.
