SG-9101CB-C10SHACC
ActiveEPSON
XTAL OSC PROG XO CMOS CTR SPRD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SG-9101CB-C10SHACC
ActiveEPSON
XTAL OSC PROG XO CMOS CTR SPRD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-9101CB-C10SHACC |
|---|---|
| Available Frequency Range [Max] | 20 MHz |
| Available Frequency Range [Min] | 670 kHz |
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 3.7 mA |
| Function | Standby |
| Height - Seated (Max) [Max] [z] | 1.3 mm |
| Height - Seated (Max) [Max] [z] | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Spread Spectrum Bandwidth | 1 % |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.28 | |
| 10 | $ 7.78 | |||
| 50 | $ 7.53 | |||
| 100 | $ 7.28 | |||
| 500 | $ 6.90 | |||
| 1000 | $ 6.27 | |||
Description
General part information
SG-9101CB-C10SHACC

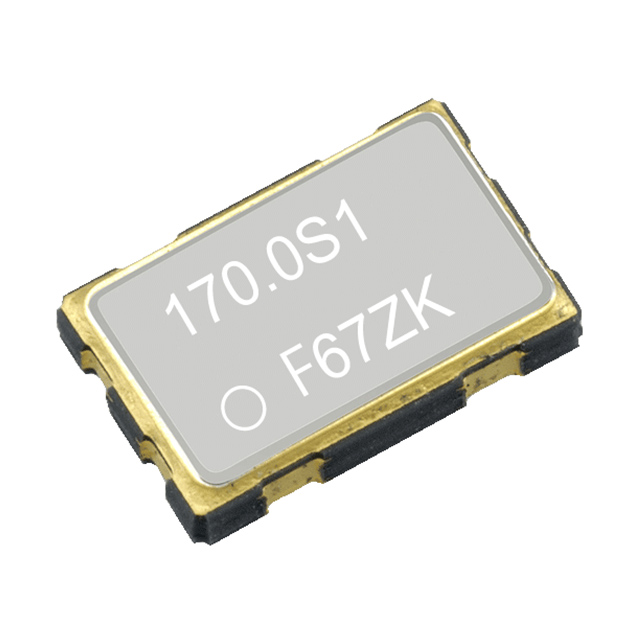

XO (Standard) CMOS 670 kHz ~ 20 MHz Programmable Oscillator 1.62V ~ 3.63V Standby 4-SMD, No Lead
