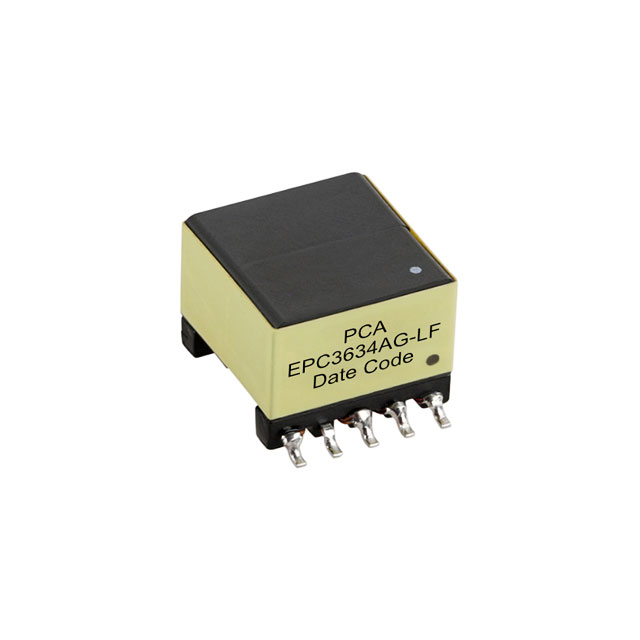

EPC3634AG-LF
ActivePCA Electronics, Inc.
POE FLYBACK XFM 12V, 36W
Deep-Dive with AI
Search across all available documentation for this part.
EPC3634AG-LF
ActivePCA Electronics, Inc.
POE FLYBACK XFM 12V, 36W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC3634AG-LF |
|---|---|
| Chipset Manufacturer | Analog Devices |
| Footprint [x] | 0.55 in |
| Footprint [x] | 13.97 mm |
| Footprint [y] | 0.695 in |
| Footprint [y] | 17.65 mm |
| Frequency | 250 kHz |
| Height - Seated (Max) [Max] [z] | 12.32 mm |
| Height - Seated (Max) [Max] [z] | 0.485 " |
| Inductance @ Frequency | 26 µH |
| Intended Chipset | LT4295 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Type | For DC/DC Converters |
| Voltage - Auxiliary | 12 V |
| Voltage - Isolation | 1500 VAC |
| Voltage - Primary [Max] | 57 V |
| Voltage - Primary [Min] | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 7.59 | |
| 5 | $ 7.12 | |||
| 10 | $ 6.67 | |||
| 25 | $ 5.62 | |||
| 50 | $ 4.52 | |||
| 100 | $ 3.48 | |||
| 250 | $ 2.51 | |||
Description
General part information
EPC3634AG-LF
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 250kHz Surface Mount
Documents
Technical documentation and resources
No documents available
