FS56-020-C2
ActiveTRIAD MAGNETICS

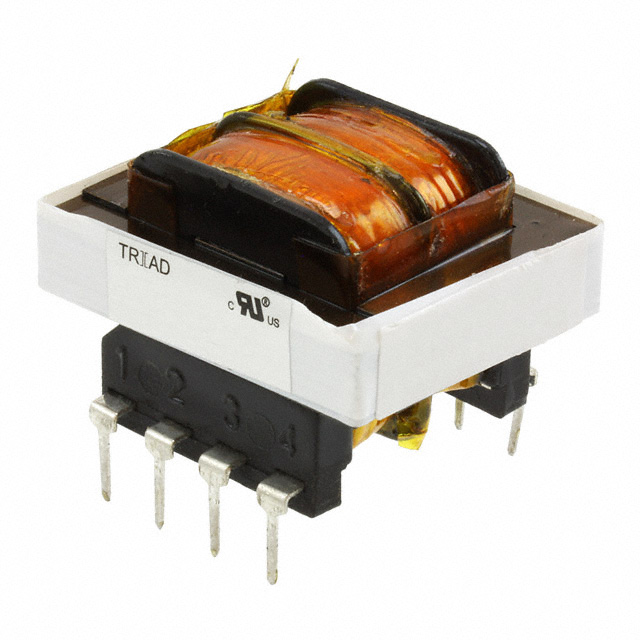

POWER XFMR 56 VCT @ 20 MA UL/CUL - CLASS 3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS56-020-C2 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
FS56-020-C2
ActiveTRIAD MAGNETICS
POWER XFMR 56 VCT @ 20 MA UL/CUL - CLASS 3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS56-020-C2 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FS56-020-C2 |
|---|---|
| Center Tap | False |
| Current - Output (Max) | 20 mA, 40 mA |
| Height - Seated (Max) [Max] [z] | 39.67 mm |
| Mounting Type | Through Hole |
| Power - Max [Max] | 1.1 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension [x] | 66.68 mm |
| Size / Dimension [y] | 55.55 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 4200 Vrms |
| Voltage - Primary | 115 V, 230 V |
| Voltage - Secondary (Full Load) | 28 V, 56 V |
| Weight | 77.11 g |
| Weight | 0.17 lb |
