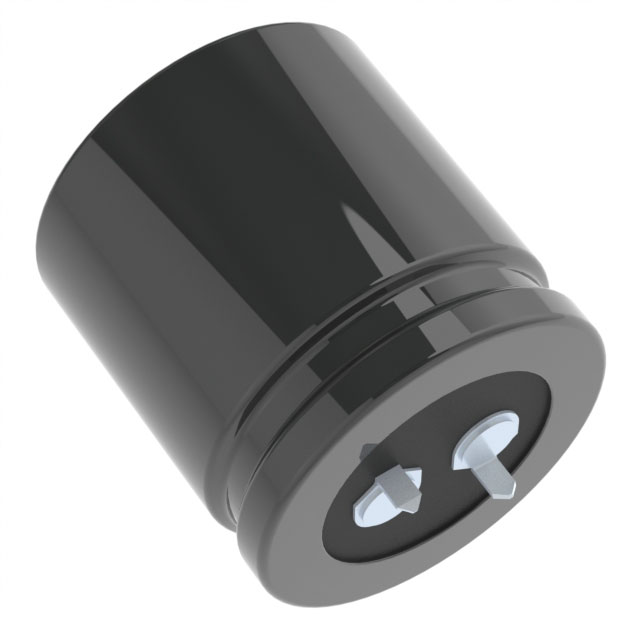

EKVA451VSN481MA35S
ActiveChemi-Con
CAP ALUM 450V POLAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EKVA451VSN481MA35S
ActiveChemi-Con
CAP ALUM 450V POLAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EKVA451VSN481MA35S |
|---|---|
| Applications | Automotive |
| Capacitance | 480 µF |
| Height - Seated (Max) [Max] [z] | 37.5 mm |
| Height - Seated (Max) [Max] [z] | 1.476 in |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can - Snap-In |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current @ High Frequency | 2.4453 A |
| Ripple Current @ Low Frequency | 1.71 A |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.78 | |
| 10 | $ 8.48 | |||
| 200 | $ 6.61 | |||
| 1000 | $ 5.54 | |||
Description
General part information
EKVA451VSN481MA35S
480 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
