31061106
ActiveMETZ CONNECT USA Inc.

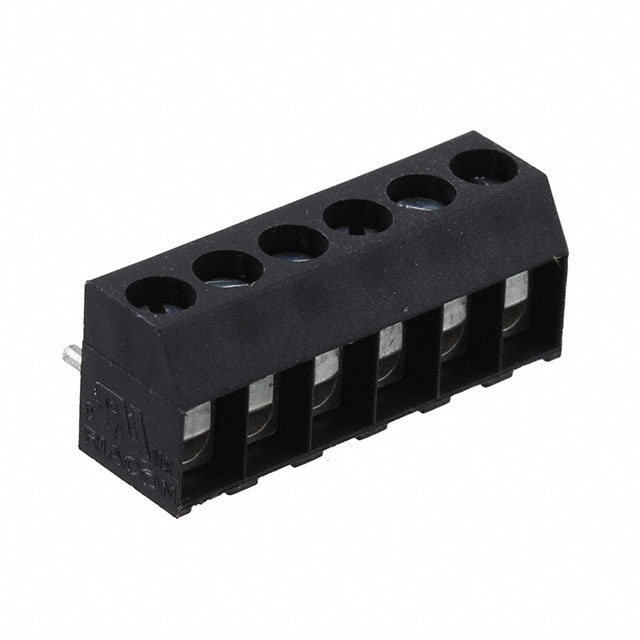

TERM BLK 6P TOP ENTRY 3.5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
31061106
ActiveMETZ CONNECT USA Inc.
TERM BLK 6P TOP ENTRY 3.5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 31061106 |
|---|---|
| Clamp Material - Plating | Copper Alloy - Tin Plated |
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 10 A |
| Features | Interlocking (Side) |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 6 |
| Screw Material - Plating | Zinc Plated |
| Screw Thread | M2 |
| Torque - Screw | 0.34 Nm |
| Torque - Screw | 3 Lb-In |
| Voltage | 150 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 2.23 | |
Description
General part information
31061106
6 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
Documents
Technical documentation and resources
